SL-330 (33,000 lb. Capacity)

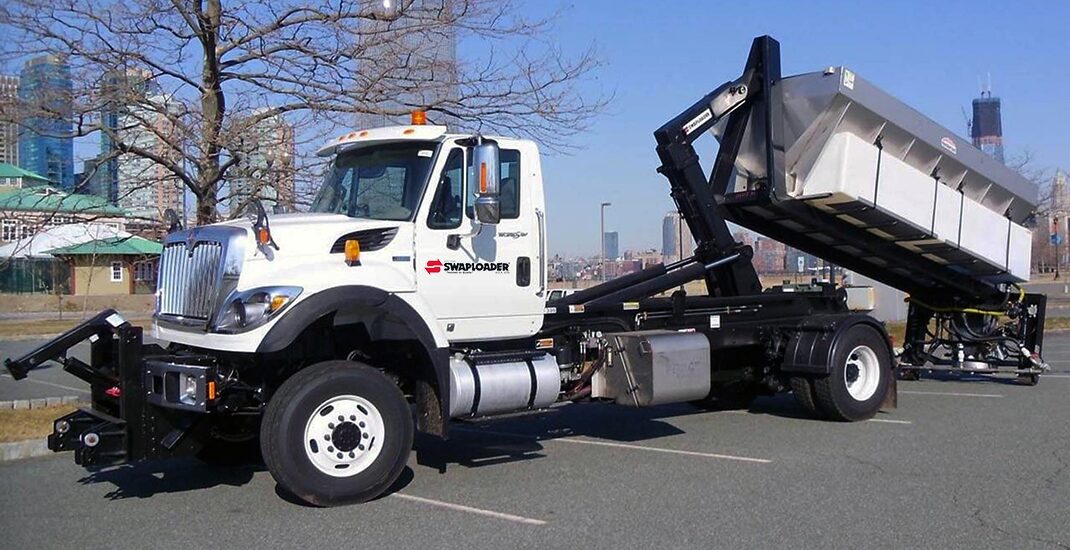

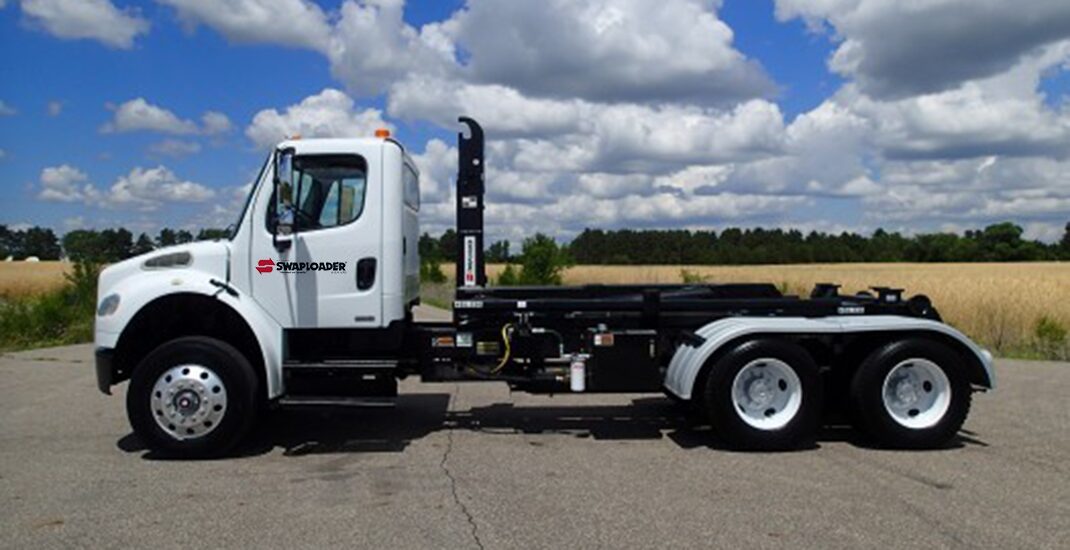

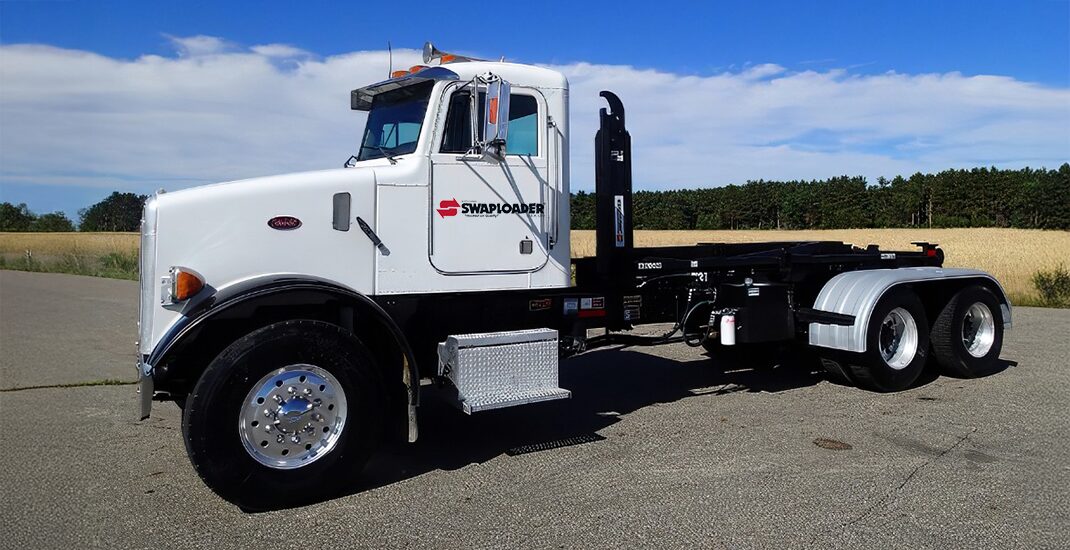

About the SL-330

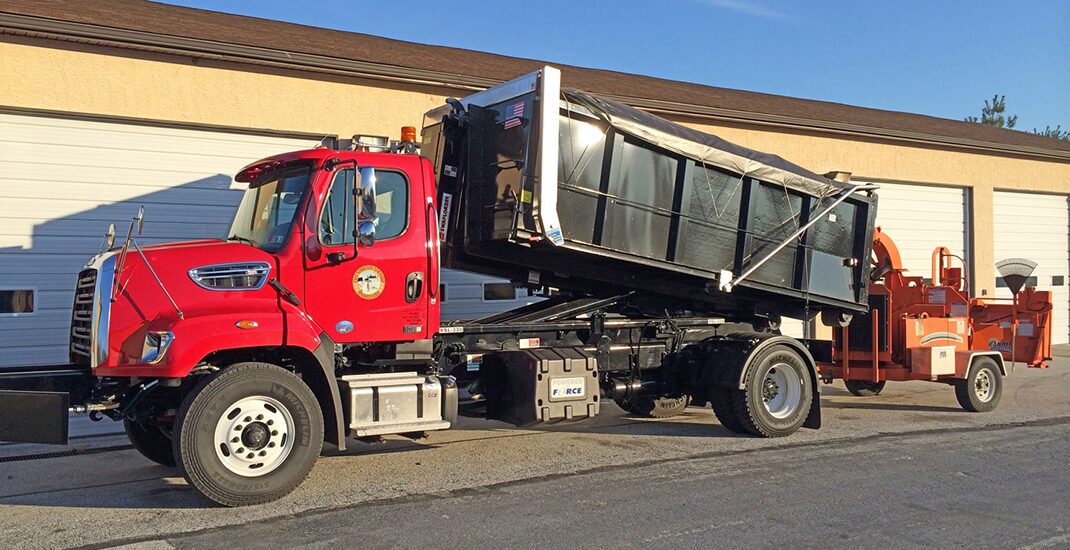

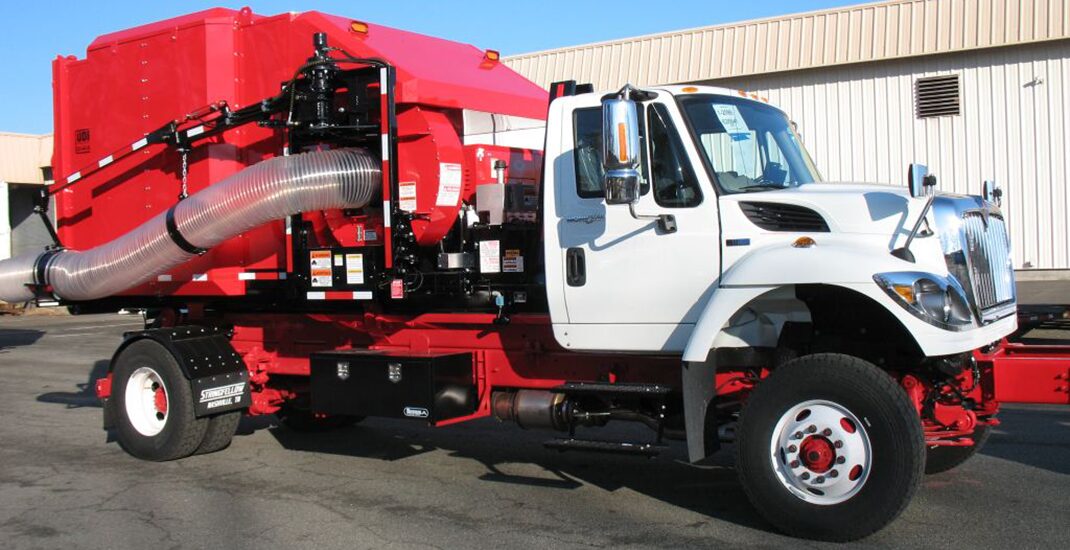

The SL-330 is designed for trucks with a GVW of 33,000 lb. or greater, making it a perfect match for heavy-duty applications. With a powerful 33,000 lb. lift capacity, it delivers the performance you need for tough, everyday work, and can accommodate 12′ to 18′ containers. Finished with a durable black powder coat, the SL-330 is built to perform—and built to last.
Specifications
| Item No. 42H21– Fixed Jib 43H37– Adjustable Jib | |
| LIFT / DUMP CAPACITY (INCLUDING CONTAINER) | 33,000 lb. |
| DUMP ANGLE | 58° |
| HOIST WEIGHT* | Fixed: 5,090 lb. or Adjustable: 5,250 lb. |
| HOOK TO REAR ROLLER | 167.50″ |
| HOOK HEIGHT | Fixed: 61.75″ or Adjustable: 53.88″ or 61.75″ |
| HOIST HEIGHT | 11″ |
| HOIST CG | 88.8″ |
| OPTIMUM BODY LENGTHS | 14′ – 16′ |
| POTENTIAL BODY LENGTHS* | 12′ – 18′ |
| BODY LONGSILL WIDTH* | 40.50″ / 41.63″ |
| HYDRAULIC PUMP TYPE | Gear (3.83) |
| FLOW @ PUMP RPM* | 22.3GPM @ 1,500 RPM |
| RELIEF PRESSURE | 3,500 PSI |
| HYDRAULIC RESERVOIR | 30 gallons |
| GVW RANGE* | 33,000 lb. or Greater |
| CAB-AXLE DIMENSIONS* (Single Axle) | 142″ – 156″ |
| CAB-TRUNNION DIMENSIONS* (Tandem Axle) | 124″ – 136″ |
| CLEAR FRAME RAIL* | 195″ |
| FRAME HEIGHT | up to 43″ |
*Please see the All-Model Spec Sheet in the Related Documents section, for more information.

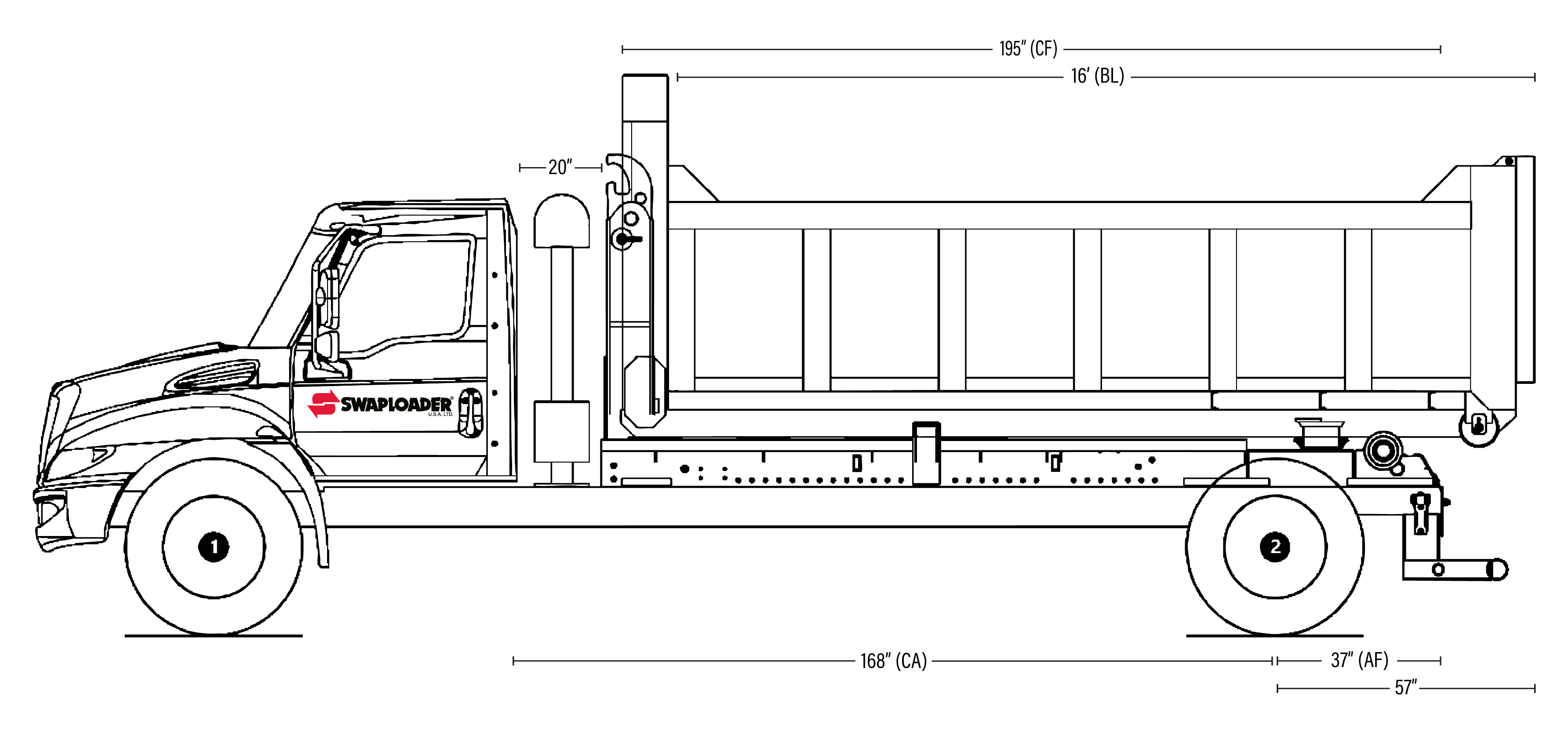

Typical Truck Layout

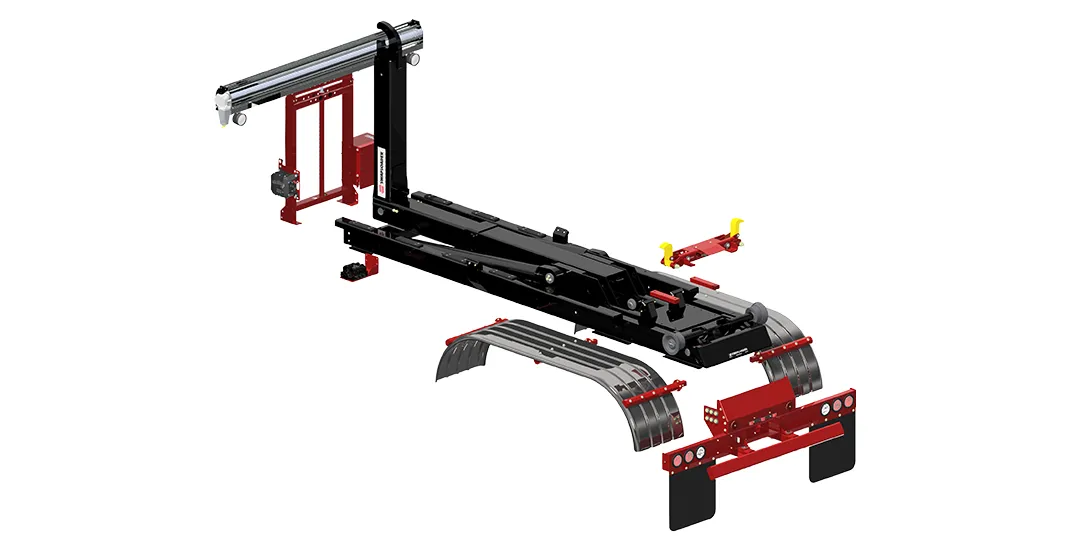

Options & Accessories
Pumps (includes kit and pump at the listed price when ordered with hoist. Kit not included if pump ordered separately.) Below are typical pump / hoist model pairings, confirm SWL pump compatibility to PTO and truck transmission prior to order.
| Transmission | PTO Item No. | PTO Description | Pairing Pump Item No. | Pump Description |
|---|---|---|---|---|
| Allison 3000 Series | 23P49 | PTO, Muncie 151% SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 21P03 | Parker Hydraulic Pump, RH 3.83 20FB/16FB Right Hand Rotation Pump (CW) |
| Allison 4000 Series | 23P60 | PTO, Muncie 141% SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 21P03 | Parker Hydraulic Pump, RH 3.83 20FB/16FB Right Hand Rotation Pump (CW) |
| Item No. | Description |
|---|---|
| 90H58 | 2-Section Valve w/ Air Controls |
| 90H68 | 3-Section Valve w/ Manual Controls |
| 90H69 | 3-Section Valve w/ Air Controls |

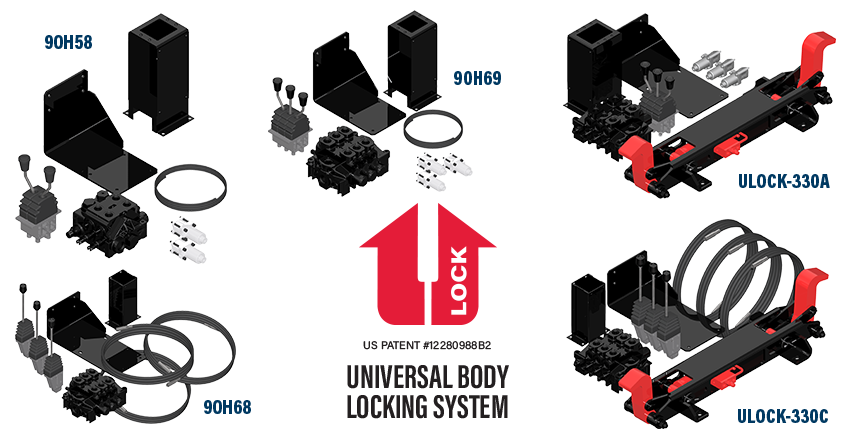

| ULOCK-330C | 3-Section Valve w/ Manual Controls & U-Lock |
| ULOCK-330A | 3-Section Valve w/ Air Controls & U-Lock |
| Control Package Add Ons: | |
| 21P42 | Power Beyond, V20 |
| Item No. | Description |
|---|---|
| 40P77 | Back Up Camera & Display |
| 40P78 | Side View Camera |
| Item No. | Description | Additional Information |
|---|---|---|
| 45H62 | Bumper & Light Assembly | Sealed module with tail, brake, back-up, license plate, side & rear clearance (prewired). Bolt-On Application – hardware included. Finish: Black Powder Coat |
| 52H11 | Bumper Assembly, Standard | Standard bumper. Welding required. See installation instructions in the Technical Guide. Finish: Black Powder Coat |
| 52H13 | Bumper Assembly, Standard w/ Extensions | Standard bumper with extensions. Welding required. See installation instructions in the Technical Guide. Finish: Black Powder Coat |
| 53H20 | Light Bar Assembly, LED | Sealed module with tail, brake, back-up, license plate, side & rear clearance (prewired). Mount hardware included. Finish: Stainless Steel |
| 42H62 | Stabilizer Assembly | Fits 400 series & HD series hoists. Must order appropriate 3-section valve package. Refer to Hydraulic Control Valve Kit Options. |
| 64H87 | Center Plate | To secure license plate and license plate lamp, taillight junction box and wiring harness. Finish: Black Powder Coat |
| Item No. | Description | Additional Information |
|---|---|---|
| FEN-22 | Fender Assembly, Poly Single 22″ | Single axle polypropylene fender set. Fits 22″- 24″ tires. Supplied with mount brackets. Color: Black |
| FEN-ST-22 | Fender Assembly, Steel Single | Single axle steel fender set. Fits 20″, 22″ tires. Supplied with mount brackets. Finish: Steel Ribbed |
| FEN-AL-22 | Fender Assembly, Aluminum Single | Single axle aluminum fender set. Fits 20″, 22″ tires. Supplied with mount brackets. Finish: Aluminum Smooth |
| FEN-AL-TDM | Fender Assembly, Aluminum Tandem | Tandem axle aluminum fender set. Fits 20″, 22″ tires. Supplied with mounting brackets & hardware. Finish: Aluminum Smooth |
| FEN-ST-TDM | Fender Assembly, Steel Tandem | Tandem axle steel fender set. Fits 20″, 22″ tires. Supplied with mounting brackets & hardware. Finish: Steel Ribbed |
| FEN-TDM | Fender Assembly, Poly Tandem | Tandem axle steel fender set. Fits 20″, 22″ tires. Supplied with mounting brackets & hardware. Color: Black |
Tarp Arms included with all tarp packages.
| Item No. | Description | Additional Information |
|---|---|---|

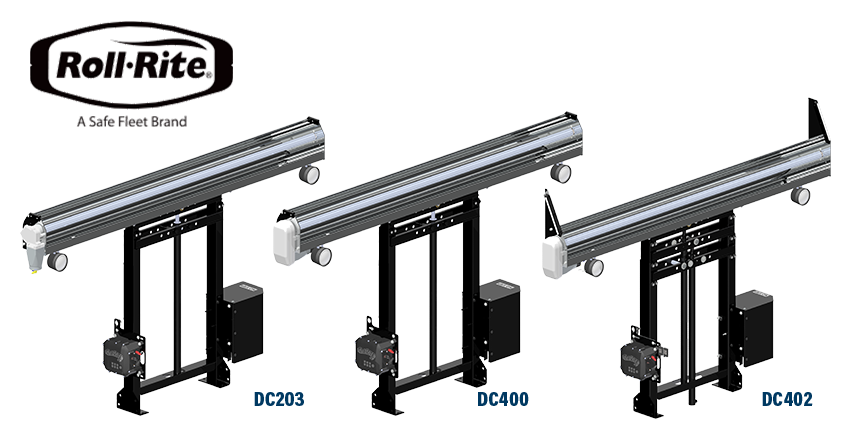

| DC203 | Roll Rite® Tarp System, Adjustable Tower & Fixed Pivots for Single Axle Trucks with 10′ – 18′ Containers | Includes: 69203 – DC203, Single Stage Tower, 5 Spring 84″ Ext Pivot, Bow Set 39001 – Bracket, Mounting U-bolt Style for Tower Set 45170 – Bracket, Mounting External for Stationary External Mount Pivots Set 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Extension 86242 – Tarp, Super Tough Mesh 96″ x 24′ Work Lights Note: If ordering manual controls with hoist, longer control cables may be required. |
| DC400 | Roll Rite® Tarp System, SD Adjustable Tower & Fixed Pivots for Tandem Axle Trucks with 18′ – 24′ Containers | Includes: 69400 – DC400, SD Adjustable Tower, 6 Spring Top Mount Pivot, Wide Bow Set 39002 – Bracket, Mounting Side Frame Style for Tower Set 46264 – Tube Mount Kit, Top Mount Pivots, 6 & 8 Spring 86302 – Tarp, Super Tough Mesh 96″ x 30′ 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Ext. Work Lights Note: If ordering manual controls with hoist, longer control cables may be required. |
| DC402 | Roll Rite® Tarp System, Dual Stage Tower & Fixed Pivots for Tandem Axle Trucks with 18′ – 24′ Containers | Includes: 69402 – DC402, SD Dual Stage Tower, 6 Spring Top Mount Pivot, Wide Bow Set 39002 – Bracket, Mounting Side Frame Style for Tower Set 46264 – Tube Mount Kit, Top Mount Pivots, 6 & 8 Spring 86302 – Tarp, Super Tough Mesh 96″ x 30′ 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Ext. Work Lights Note: If ordering manual controls with hoist, longer control cables may be required. |
| Item No. | Description | Additional Information |
|---|---|---|

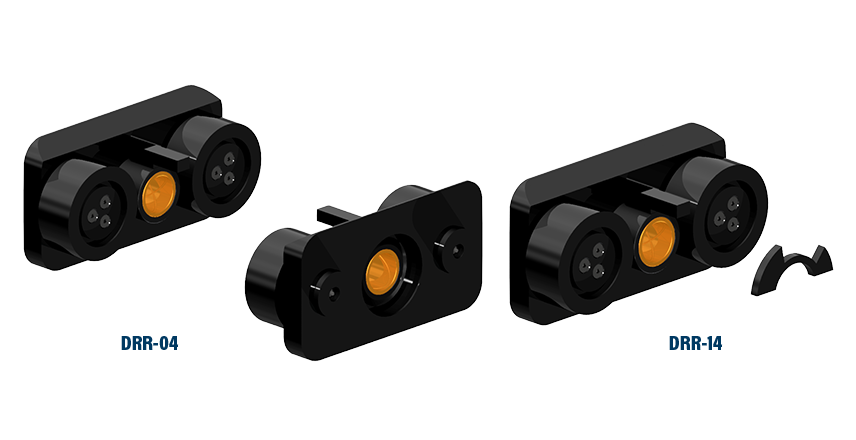

| DRR-04 | Dual Rear Roller Assembly Factory Installation | Includes one set of dual rear roller assemblies and is in lieu of standard rollers. |
| DRR-14 | Dual Rear Roller Assembly Field Installation | Requires TWO dual rear roller assemblies per hoist. Stop plates included & will require welding. |
53 7/8″ Hook Height
Heavy duty A-frame with Ø2-1/2″ lift bar construction, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 52H59 | 12′ – 300 Series Subframe |
| 52H62 | 13′ – 300 Series Subframe |
| 52H23 | 14′ – 300 Series Subframe |
| 52H65 | 15′ – 300 Series Subframe |
| 52H26 | 16′ – 300 Series Subframe |
| 52H29 | 18′ – 300 Series Subframe |
61 3/4″ Hook Height
A-frame with Ø2-1/2″ lift bar, 8″ longsills, 61-3/4″ hook height to bottom of lifting bar, 40-1/2″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 42H12 | 14′ – 400S Series Subframe |
| 42H14 | 16′ – 400S Series Subframe |
| 42H15 | 18′ – 400S Series Subframe |
Related Documents
SL-330 Parts and Installation Manual
300 Series 53 7/8″ Hook Height Sub-Frame Critical Dimensions Drawing
400 Series 61 3/4″ Hook Height Sub-Frame Critical Dimensions Drawing
