SL-650 (65,000 lb. Capacity)

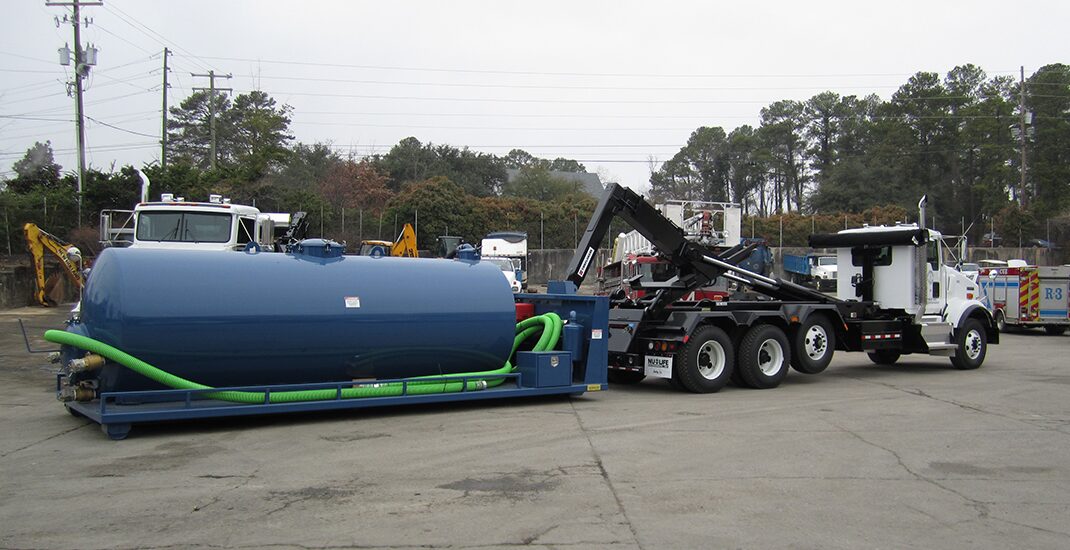

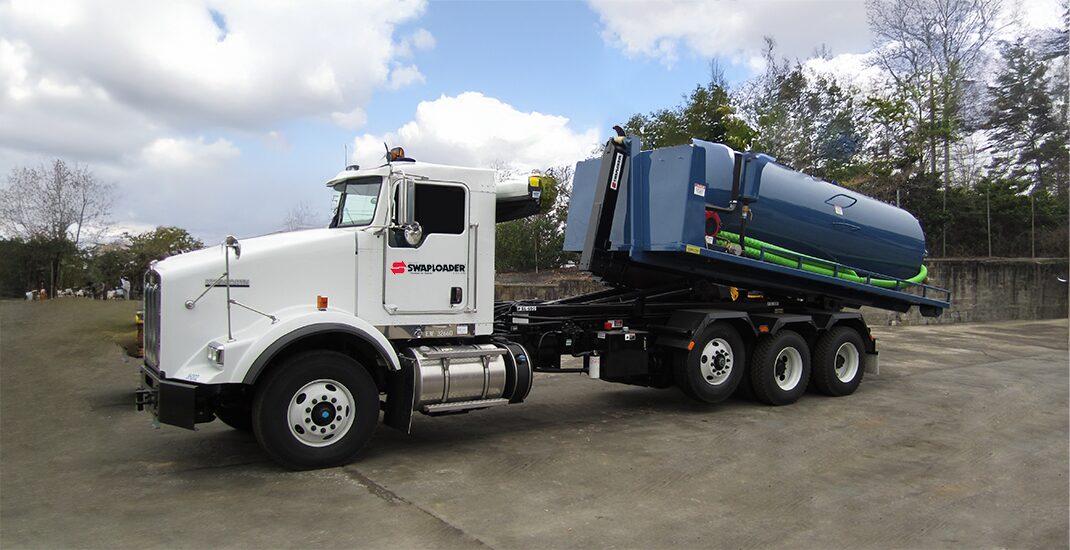

SL 650 SwapLoader
SL 650 SwapLoader Back

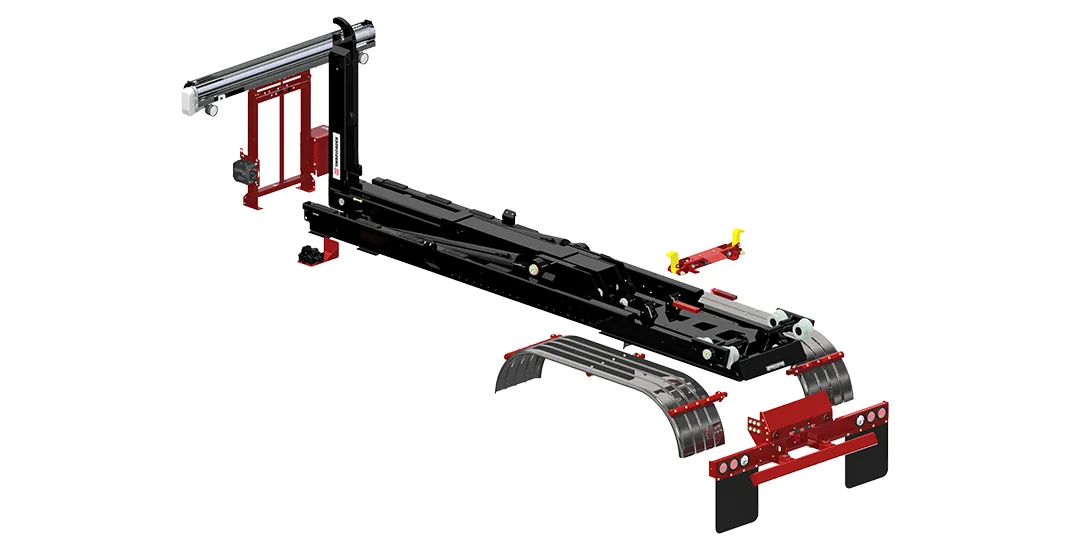

SL 650 with Accessories

About the SL-650

The SL-650 is designed for trucks with a GVW of 55,000 lb. or greater, making it a perfect match for heavy-duty applications. With a powerful 65,000 lb. lift capacity, it delivers the performance you need for tough, everyday work, and can accommodate 17′ – 24′ containers. Finished with a durable black powder coat, the SL-650 is built to perform—and built to last.


Specifications

Item No.
42H42– Fixed Jib
LIFT / DUMP CAPACITY
(INCLUDING CONTAINER)
65,000 lb.
DUMP ANGLE54°
HOIST WEIGHT*8,190 lb.
HOOK TO REAR ROLLER226.50″
HOOK HEIGHTFixed: 61.75″
HOIST HEIGHT13″
HOIST CG125.0″
OPTIMUM BODY LENGTHS20′ – 22′
POTENTIAL BODY LENGTHS*17′ – 24′
BODY LONGSILL WIDTH*40.50″ / 41.63″
HYDRAULIC PUMP TYPEGear (4.46)
FLOW @ PUMP RPM*26.0 GPM @ 1,500 RPM
RELIEF PRESSURE3,500 PSI
HYDRAULIC RESERVOIR30 gallons
GVW RANGE*55,000 lb. or Greater
CAB-TRUNNION DIMENSIONS* (Tandem Axle)183″ – 195″
CLEAR FRAME RAIL*252″
FRAME HEIGHTup to 45″

*Please see the All-Model Spec Sheet in the Related Documents section, for more information.


Typical Truck Layout

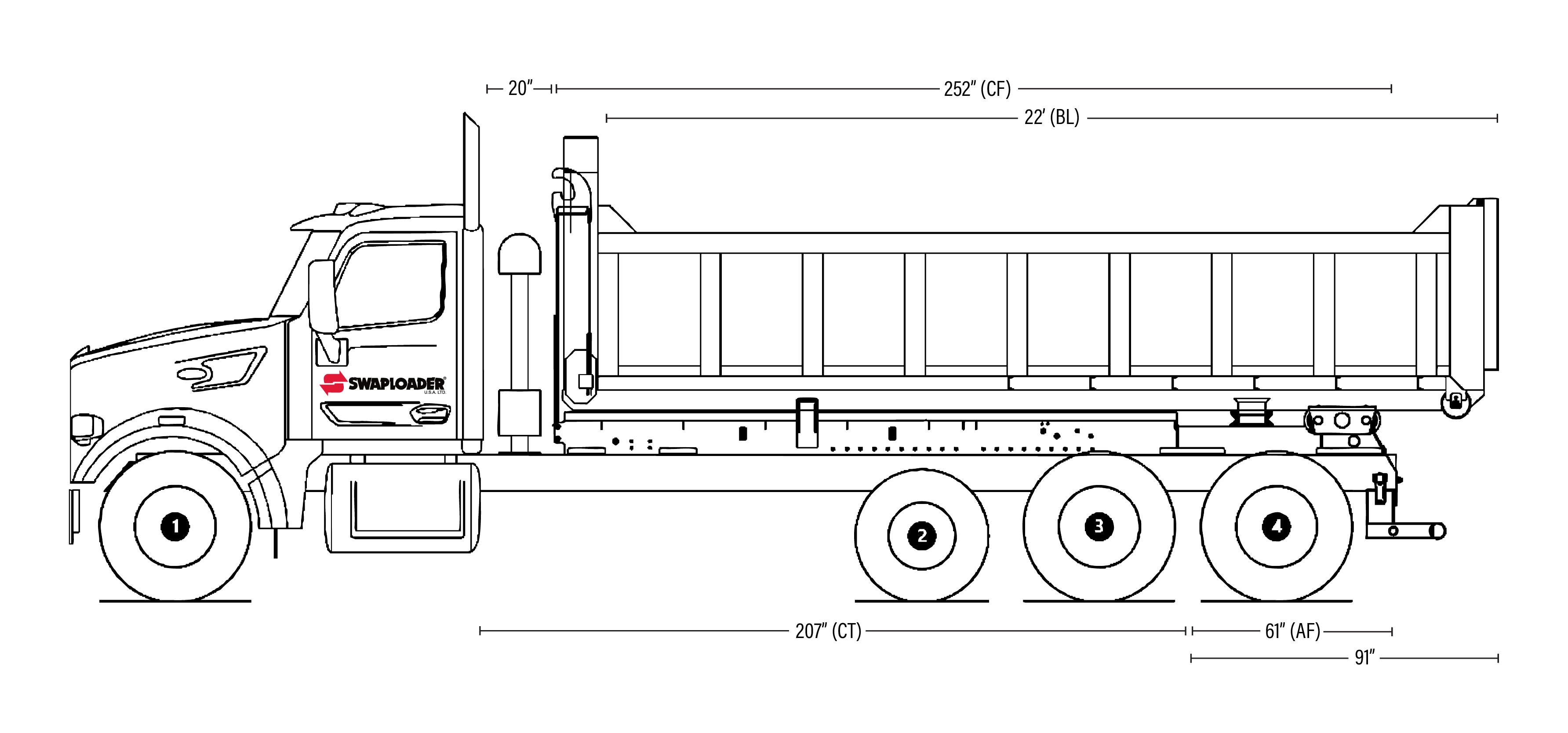

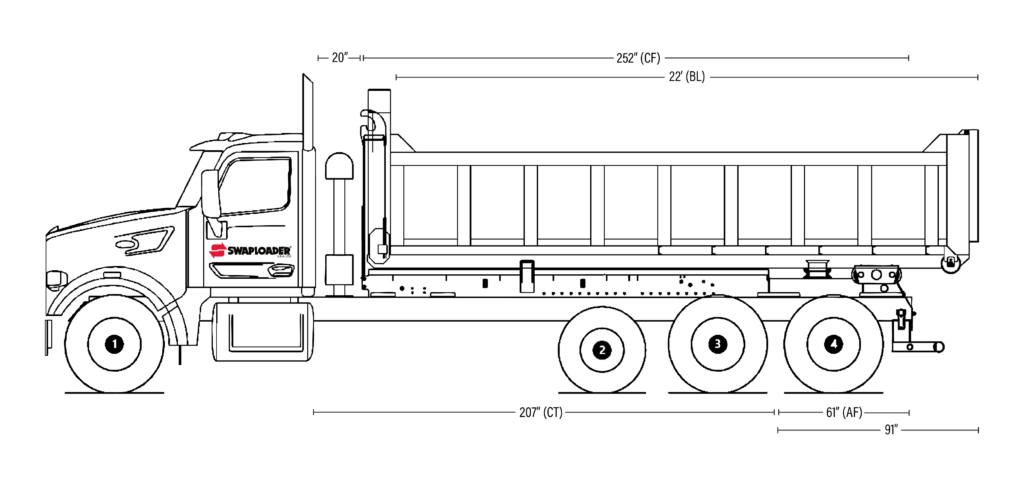

Typical Truck Drawings SL 650

Options & Accessories

PTO Pumps 856 96 Trans

Pumps (includes kit and pump at the listed price when ordered with hoist. Kit not included if pump ordered separately.) Below are typical pump / hoist model pairings, confirm SWL pump compatibility to PTO and truck transmission prior to order.

TransmissionPTO
Item No.
PTO
Description
Pairing Pump
Item No.
Pump Description
Allison 4000 Series23P60PTO, Muncie 141%
SAE B 2/4 Bolt Flange
SAE B 7/8-13 Tooth Spline
Electric over Hydraulic Hotshift
22P45Parker Hyd Pump, RH 4.46
24FP/16FB
Right Hand Rotation Pump (CW)

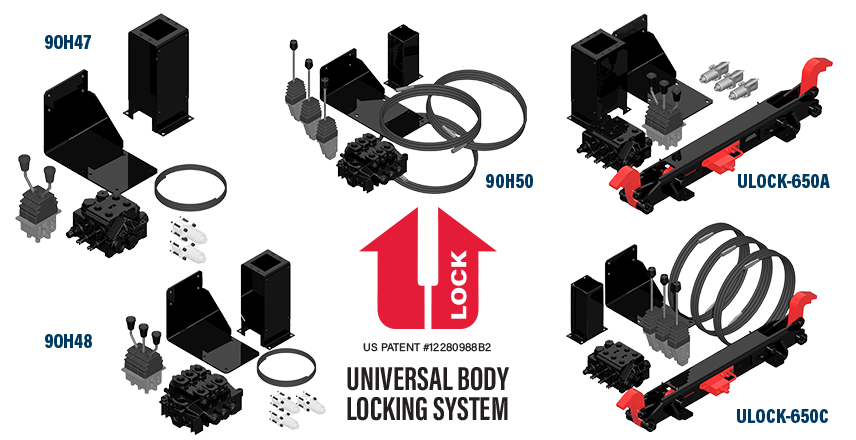

Image Control Pkg Product SL 650 856px 440px
Item No.Description
90H472-Section Valve w/ Air Controls
90H483-Section Valve w/ Air Controls
90H503-Section Valve w/ Manual Controls
ULOCK-650C3-Section Valve w/ Manual Controls & U-Lock
ULOCK-650A3-Section Valve w/ Air Controls & U-Lock
Control Package Add Ons:
22P64Power Beyond, VG20

Cameras 856 96 Trans
Item No.Description
40P77Back Up Camera & Display
40P78Side View Camera

Bumpers 856 96 Trans
Item No.DescriptionAdditional Information
45H62Bumper & Light AssemblySealed module with tail, brake, back-up, license plate, side & rear clearance (prewired).
Bolt-On Application – hardware included.
Finish: Black Powder Coat
52H11Bumper Assembly, StandardStandard bumper. Welding required.
See installation instructions in the Technical Guide.
Finish: Black Powder Coat
52H13Bumper Assembly, Standard w/ ExtensionsStandard bumper with extensions. Welding required.
See installation instructions in the Technical Guide.
Finish: Black Powder Coat
53H20Light Bar Assembly, LEDSealed module with tail, brake, back-up, license plate, side & rear clearance (prewired).
Mount hardware included.
Finish: Stainless Steel
42H62Stabilizer AssemblyFits 400 series & HD series hoists.
Must order appropriate 3-section valve package.
Refer to Hydraulic Control Valve Kit Options.
64H87Center PlateTo secure license plate and license plate lamp, taillight junction box and wiring harness.
Finish: Black Powder Coat

Image Fenders Tandem Product 856px 440px
Item No.DescriptionAdditional Information
FEN-AL-TDMFender Assembly, Aluminum TandemTandem axle aluminum fender set. Fits 20″, 22″ tires.
Supplied with mounting brackets & hardware.
Finish: Aluminum Smooth
FEN-ST-TDMFender Assembly, Steel TandemTandem axle steel fender set. Fits 20″, 22″ tires.
Supplied with mounting brackets & hardware.
Finish: Steel Ribbed
FEN-TDMFender Assembly, Poly TandemTandem axle steel fender set. Fits 20″, 22″ tires.
Supplied with mounting brackets & hardware.
Color: Black

Image Tarps Product SL 418X 856px 440px

Tarp Arms included with all tarp packages.

Item No.DescriptionAdditional Information
DC352Roll Rite® Tarp System, Dual-Stage Tower & Sliding Pivots
for tandem axle trucks with 20′ – 24′ containers
Includes:
69352 – DC352, SD Dual Stage Tower, Super Slider Pivot, Wide Bow Set, 45°Offsets (low profile arms)
39002 – Bracket, Mounting Side Frame Style for Tower Set
46164 – Bracket, Mounting Narrow for 3″ Narrow Profile Sliding Pivots Set
86302 – Tarp, Super Tough Mesh 96″ x 30′
Work Lights
Note: If ordering manual controls with hoist, longer control cables may be required.
DC358Roll Rite® Tarp System, Single-Stage Tower & Sliding Pivots for tandem axle trucks with 20′ – 24′ containersIncludes:
9358 – DC358, SD Single Stage Tower, Super Slider Pivots, Wide Bow Set, 45°Offset, 96″ x 30′ Reversible Tarp
39002 – Bracket, Mounting Side Frame Style for Tower Set
46164 – Bracket, Mounting Narrow for 3″ Narrow Profile Sliding Pivots Set
Work Lights
Note: If ordering manual controls with hoist, longer control cables may be required.
DC400Roll Rite® Tarp System, SD Adjustable Tower & Fixed Pivots for Tandem Axle Trucks with 18′ – 24′ ContainersIncludes:
69400 – DC400, SD Adjustable Tower, 6 Spring Top Mount Pivot, Wide Bow Set
39002 – Bracket, Mounting Side Frame Style for Tower Set
46264 – Tube Mount Kit, Top Mount Pivots, 6 & 8 Spring
86302 – Tarp, Super Tough Mesh 96″ x 30′
76916 – Pivot, 45 Low Arm Elbow Kit 32″ Ext.
Work Lights
Note: If ordering manual controls with hoist, longer control cables may be required.
DC402Roll Rite® Tarp System, Dual Stage Tower & Fixed Pivots for Tandem Axle Trucks with 18′ – 24′ ContainersIncludes:
69402 – DC402, SD Dual Stage Tower, 6 Spring Top Mount Pivot, Wide Bow Set
39002 – Bracket, Mounting Side Frame Style for Tower Set
46264 – Tube Mount Kit, Top Mount Pivots, 6 & 8 Spring
86302 – Tarp, Super Tough Mesh 96″ x 30′
76916 – Pivot, 45 Low Arm Elbow Kit 32″ Ext.
Work Lights
Note: If ordering manual controls with hoist, longer control cables may be required.

52H59 856 400px

61 3/4″ Hook Height

A-frame with Ø2-1/2″ lift bar, 8″ longsills, 61-3/4″ hook height to bottom of lifting bar, 40-1/2″ outside rail width. Body rollers & brackets not included.

Item No.Description
41H1920′ – 400 Series Subframe
41H2222′ – 400 Series Subframe
