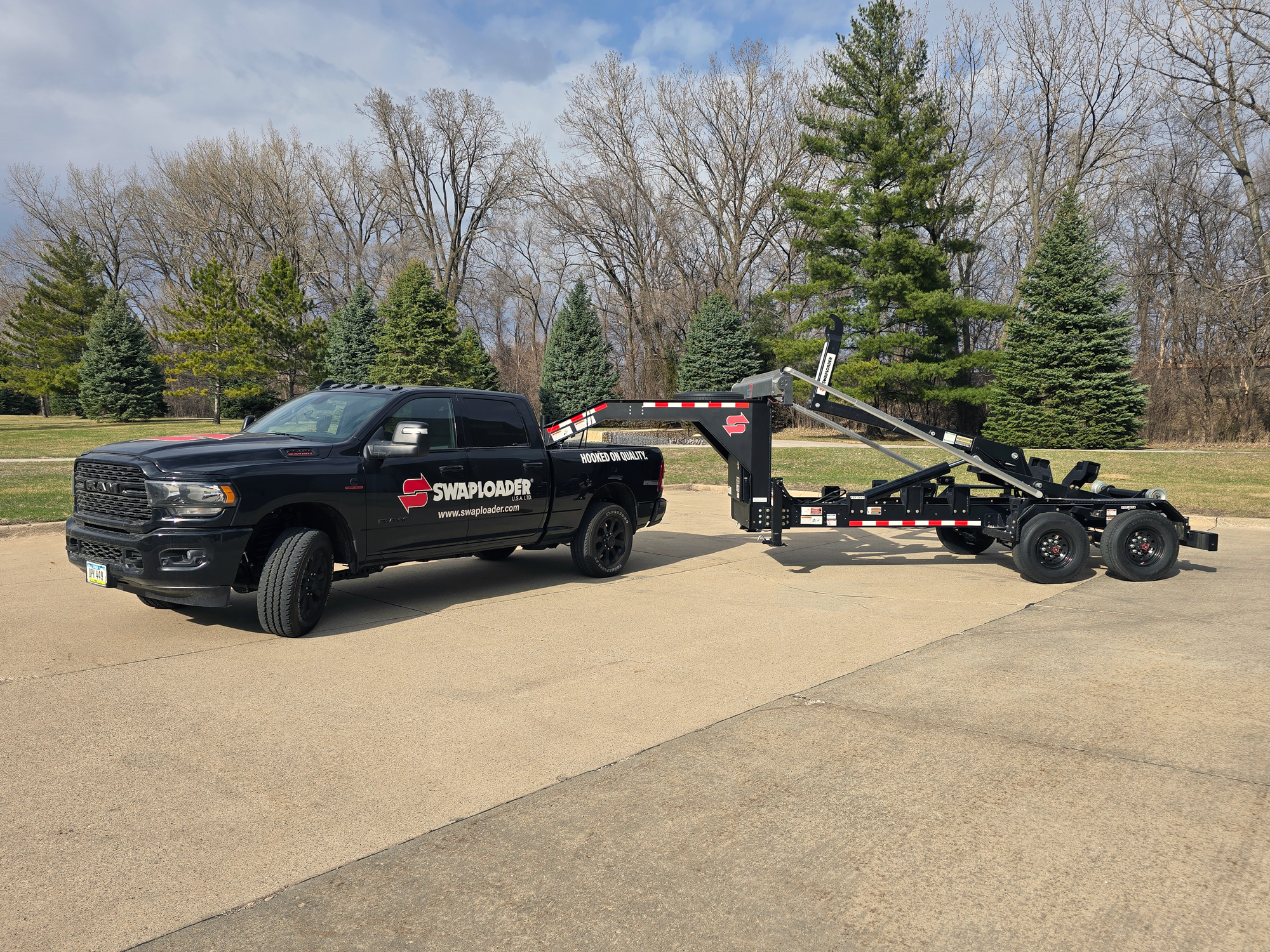

Trailer Page
About This Product
Fixed Jib – Item No. SL-75-PWR
Adjustable Jib – Item No. SL-75-EHV
Need copy
Specs
| Hoist Capacity (Lift/Dump) | 12,000 lb. |
| GVWR | 16,000 lb. |
| Batteries | (2) 12V Deep Cycle AGM31 (100Ah) |
| Tires | 14-ply, 16”, Black (ST235/80R G) |
| Body Length | 12′ – 14′ |
| Hook Height | Fixed 36″ or Adjustable 36″ / 54″ |
| Flow @ Pump RPM | 3.0 GPM @ 1,000 RPM |
| PSI | 3,500 |
Related Documents
Features & Benefits
SwapLoader hooklifts are built for durability, versatility, and ease of use—designed to handle a wide range of jobs with a single truck. With precision-engineered construction and industry-leading safety features, SwapLoader delivers reliable performance and maximizes productivity on every haul.
Dual Lift/Dump Cylinders
Excellent load stability during the mount, dismount and dump cycles.
Slide Through Rear Body Locks
SwapLoader’s Slide Through Rear Body Lock design safely secures the body or container to the hoist. The Slide Through Rear Body Locks, in conjunction with the Sliding Jib, allows the operator to re-position the body or container on the hoist.
Dual Rear Pivot Section
Provides true dump truck capabilities while securing the body or container in the body locks of the hoist and provides breakaway power for lifting heavy loads off the ground.
Sliding Jib Design
The Sliding Jib, by the use of a hydraulic cylinder, positions and secures the body or container in the rear body locks of the hoist. The Sliding Jib, in conjunction with the Slide Through Rear Body Locks, allows the operator to reposition the body or container on the hoist.
Adjustable Jib
The adjustable jib enhances the versatility of the SwapLoader hoist to adjust between different hook heights without the use of tools or hydraulics, allowing for the exchange of bodies in a matter of minutes.
Low-Pressure Hydraulics
SwapLoader is a low-pressure / high-volume system. Designed to allow for easy sharing with other hydraulic-powered equipment (spreaders, tarps, water tanks, etc.).
Dual Integral Counterbalance Valves
Counterbalance valves incorporated into each hydraulic cylinder, offer unmatched safety and protection from an unforeseen loss of pressure.
Hoist Mainframe
SwapLoader’s heavy-duty “Z” rail design provides for a safe and strong mainframe.
Grease Zerk’s and Bronze Bushings
All pivot points incorporate grease zerks and bronze bushings to provide easy access for basic maintenance and the expulsion of contaminants.
Nylatron Slide Pads
Allows for ease of loading and unloading bodies or containers.
Jib Lock-out Valve
Safety feature preventing the accidental jib cylinder operation when the body is raised in a dump mode.
5-Year Limited Warranty
Unrivaled 5-year limited warranty demonstrates SwapLoader’s confidence in our product.
