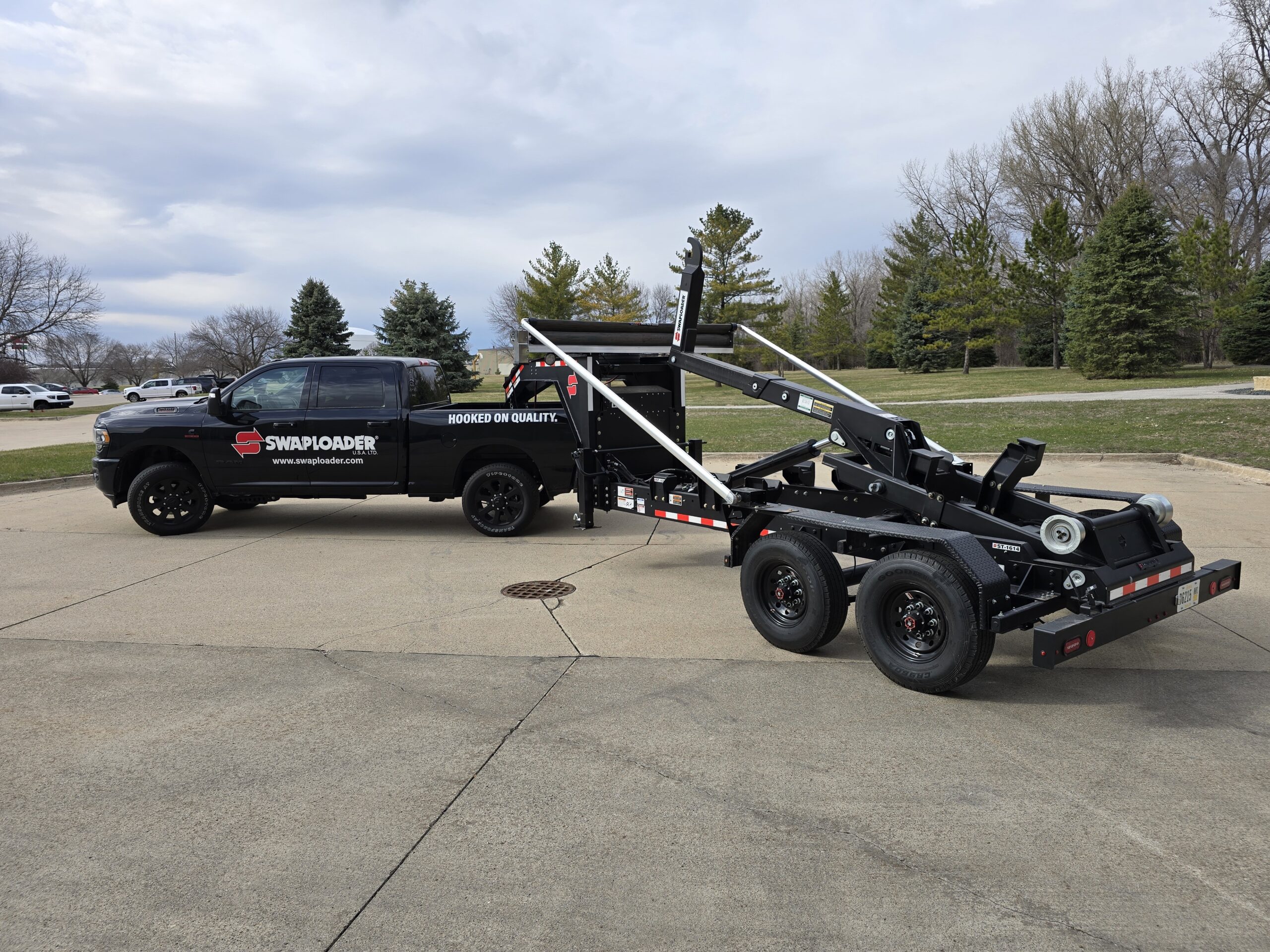

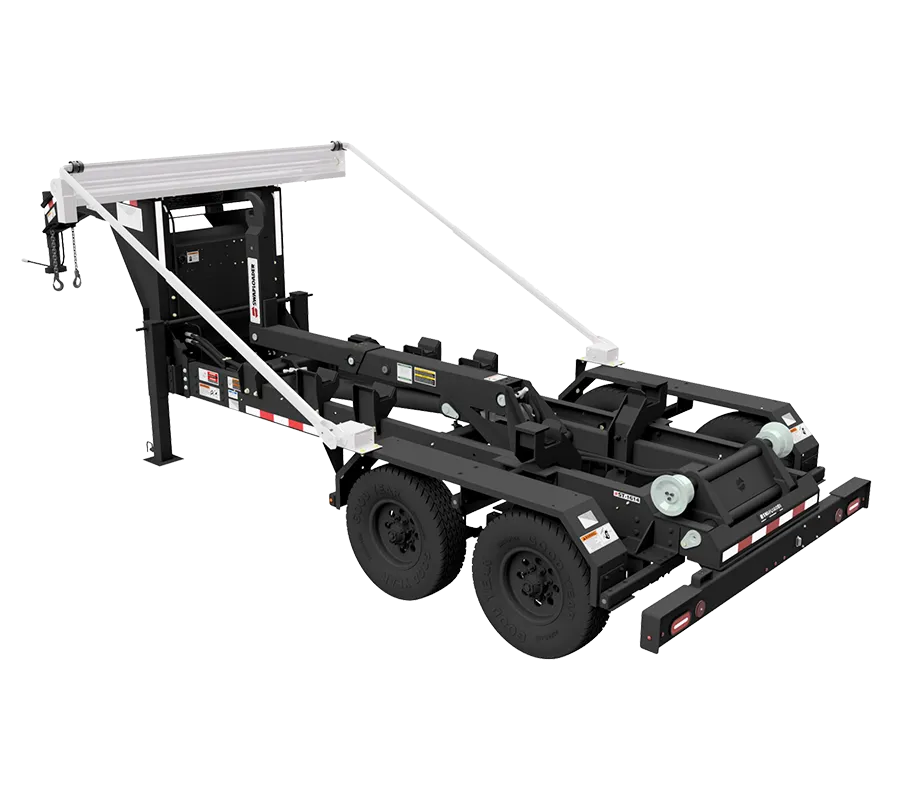

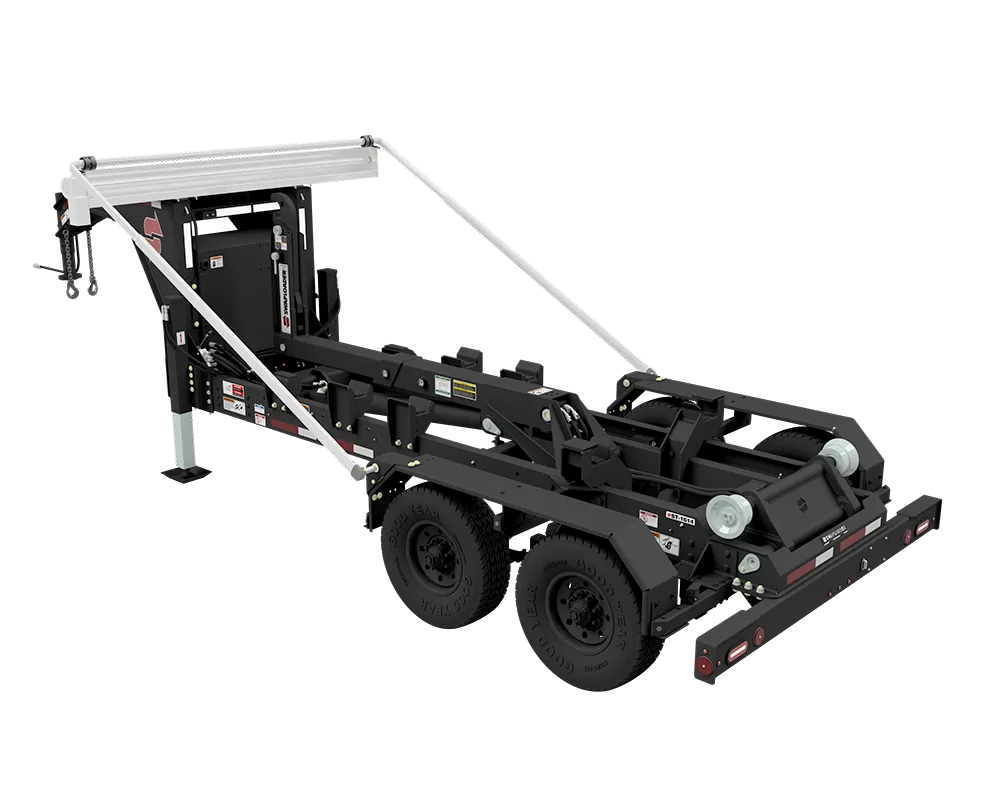

ST-1614 (16,000 lb. GVWR)
About the ST-1614

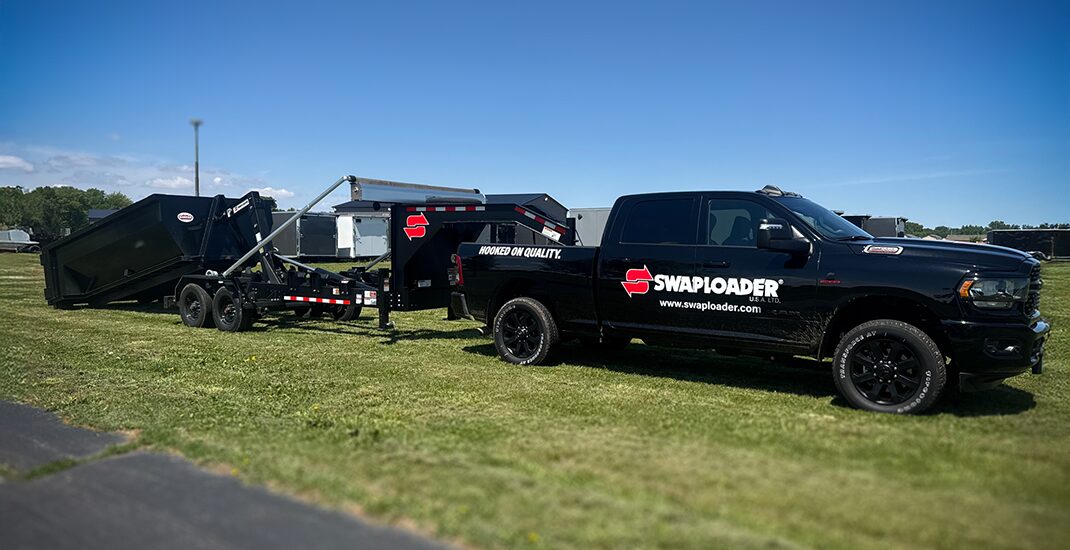

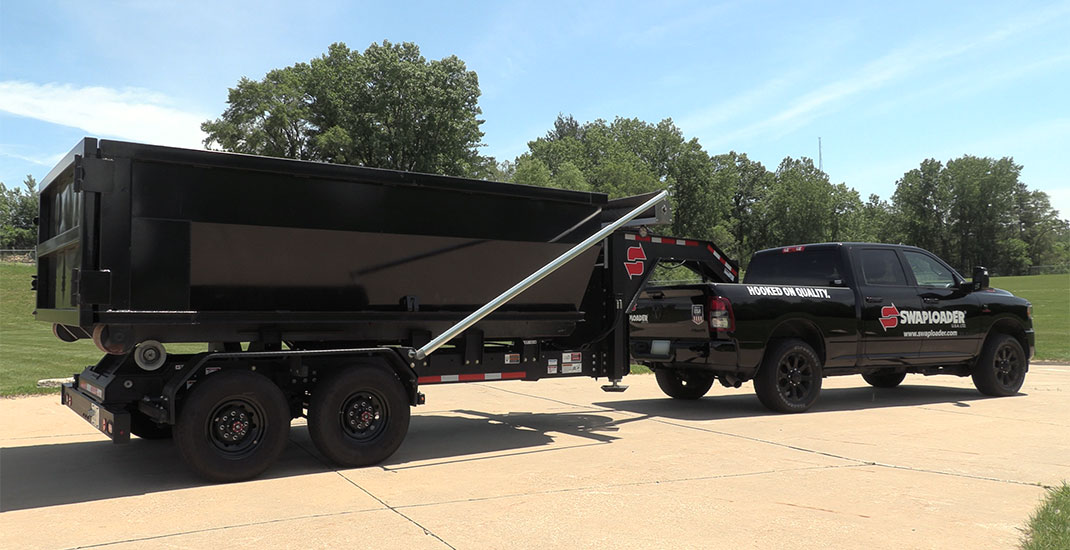

The ST-1614 is an ideal entry point into the hooklift industry—perfect for contractors, landscapers, and waste haulers. With a GVW of 16,000 lb. and under, it’s well-suited for medium-duty applications. With a robust 12,000 lb. lift capacity and compatibility with 12′ to 14′ containers, the ST-1614 delivers the power and performance needed for daily jobs. Finished in a durable black powder coat, it’s built to perform—and built to last.
Specifications
| Item No. ST-1614-GNF – Gooseneck Fixed Jib ST-1614-GNA – Gooseneck Adjustable Jib | |
| GVWR | 16,000 lb. |
| ESTIMATED TARE WEIGHT | 5,500 lb. (option dependent) |
| HOIST CAPACITY (LIFT / DUMP) | 12,000 lb. |
| BODY LENGTH | 12′ – 14′ |
| HOOK HEIGHT | Fixed: 35 5/8″ or Adjustable: 35 5/8″ or 53 7/8″ |
| HOOK TO ROLLER DISTANCE | 168″ |
| COUPLER TO BUMPER DISTANCE | 287″ |
| COUPLER | 2-5/16” Round Adjustable Pin, 25,000 lb. |
| AXLES | Dexter, Tandem 10,000 lb., Greased |
| BRAKES | Electric |
| TIRES | 14-ply, 16”, Black (ST235/80R G) |
| SAFETY CHAINS | 3/8” x 35” Chains, 16,200 lb. Minimum Breaking Force |
| POWER UNIT | 24V DC Bucher |
| PUMP | 3 GPM, Gear |
| HOIST CONTROLS | Wireless Remote Controls Hoist & Tarp, Phone App w/ Diagnostics |
| CHARGING | 110V AC Plug from Wall (Standard), 12V Anderson Connector from Truck Alternator (Optional) |
| BATTERIES | (2) 12V Deep Cycle AGM31 (100Ah) |
| OPERATING PRESSURE | 3,500 PSI |
| JIB CYLINDER | 3” Bore x 36” Stroke w/ Single Counterbalance Valve |
| LIFT CYLINDER | 5” Bore x 51” Stroke w/ Dual Counterbalance Valves |
| LIGHTING | LED |
| ELECTRIC PLUG | 7-way RV |
| TRAILER FINISH | Black Textured Powder Coat |
| TARP (OPTIONAL) | Shur-Co® Waste Warrior, Power Open/Close, Manual Gantry |
Options & Accessories
| Item No. | Description | Additional Information |
|---|---|---|

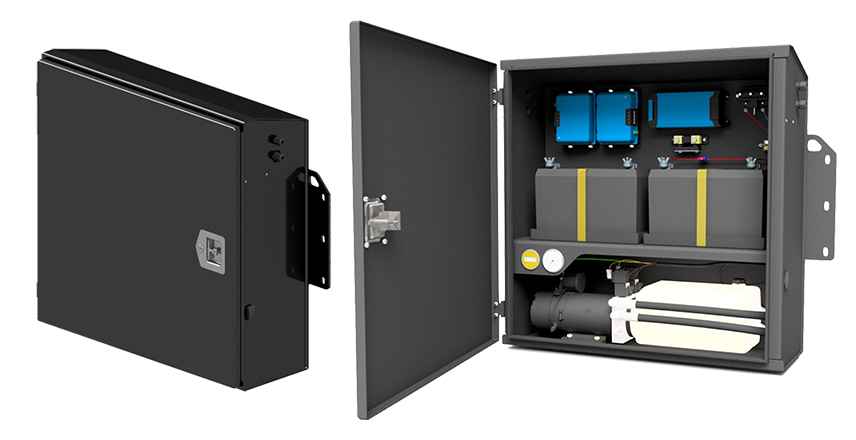

| 55H92 | Electric Power Unit, Dual Charge | Included as standard equipment with the trailer. Allows for remote control of the hoist cylinders and tarp arms. Charges with 110V AC power from a standard 3-prong outlet or 12V DC power through an Anderson connector (included). |
| Item No. | Description | Additional Information |
|---|---|---|

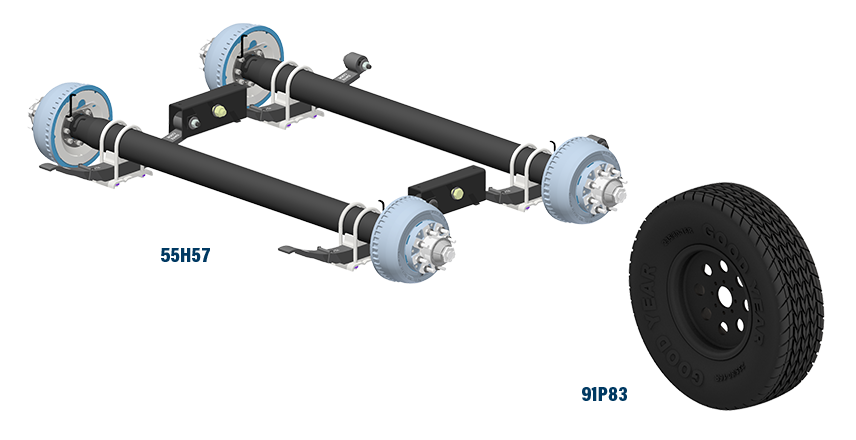

| 55H57 | Dexter Oil Bath Spring Axles, 10k (Standard) | Included as standard equipment with the trailer. |
| 91P83 | Spare Wheel & Tire, ST235/80R16 Radial Tires | All four wheels & tires are included as standard equipment. Spares are available at an additional cost. Load Range G (4,080 lb. @ 110 PSI), 8 on 6.5″ Bolt Pattern, Black Modular Wheel with Balance Beads |
| Item No. | Description | Additional Information: |
|---|---|---|

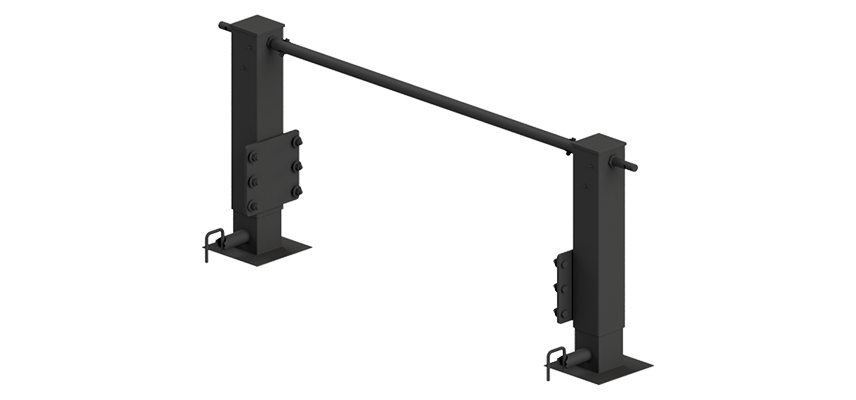

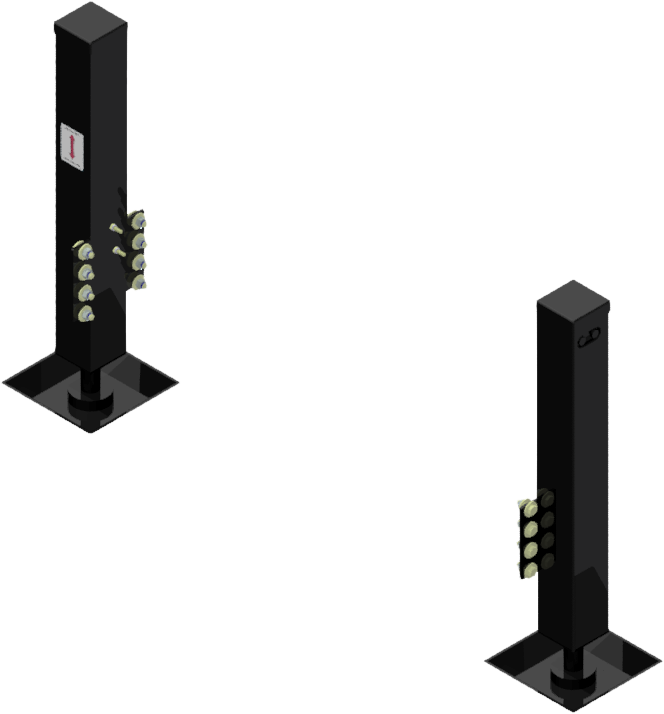

| 55H91 | Dual Jack Stands, Manual (Standard) | Included as standard equipment with the trailer. 10,000 lb lift capacity per jack, powered by hand crank with spring return. |
| Item No. | Description | Additional Information: |
|---|---|---|

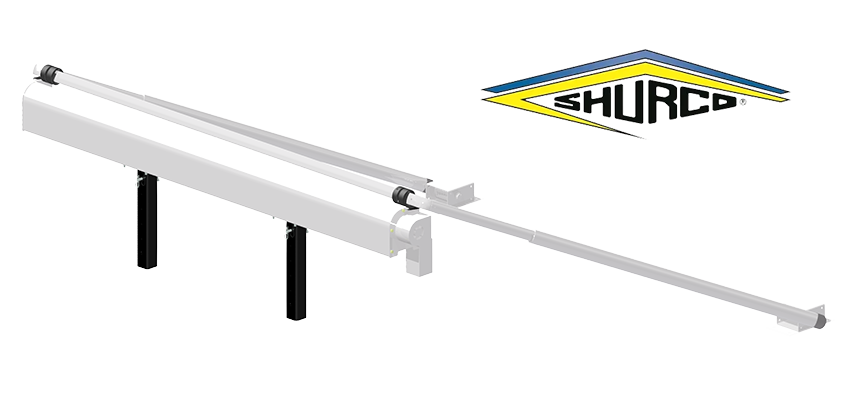

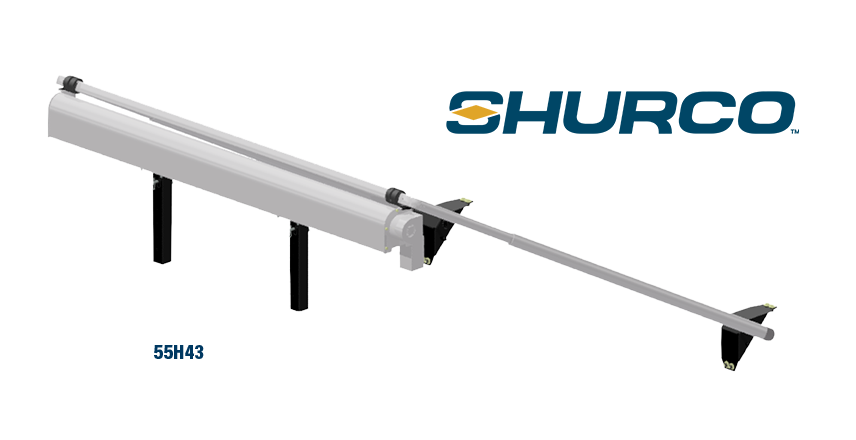

| 55H43 | Shur-Co® Tarp Assembly, Trailer Manual Gantry | Tarp extend & retract controlled with the wireless remote. Gantry height manually adjustable. |
| Item No. | Description |
|---|---|
| 41P11 | Dual Wireless Back-Up Camera System |
35 5/8″ Hook Height
A-frame with Ø1-1/4″ lift bar, 5″ longsills, 35-5/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 11H27 | 12′ – 100 Series Subframe |
| 11H28 | 14′ – 100 Series Subframe |
53 7/8″ Hook Height
A-frame with Ø1-3/4″ lift bar, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 51H54 | 13′ – 200B Series Subframe |
| 51H51 | 14′ – 200B Series Subframe |
Heavy duty A-frame with Ø2-1/2″ lift bar construction, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 52H59 | 12′ – 300 Series Subframe |
| 52H62 | 13′ – 300 Series Subframe |
| 52H23 | 14′ – 300 Series Subframe |
Related Documents
ST-1614 Parts and Operation Manual
ST-1614 Hooklift Trailer Flyer
100 Series 35 5/8″ Hook Height Sub-frame Critical Dimensions Drawing
200 Series 53 7/8″ Hook Height Sub-Frame Critical Dimensions Drawing
300 Series 53 7/8″ Hook Height Sub-Frame Critical Dimensions Drawing
Features and Benefits
Built to Perform. Engineered to Last.
At SwapLoader, we don’t just build the best hooklift trailer in the USA—we build solutions that work as hard as you do. Every component of our hooklift trailer is thoughtfully designed to deliver unmatched durability, reliability, and ease of use. From the industry-trusted gooseneck design to the Shur-Co® electric tarp system and rugged suspension, each feature adds value where it matters most—on the job site and on the road. Backed by a 3-Year Limited Warranty and made in the USA, this is the trailer you can count on day in and day out.
Discover the features that set us apart:

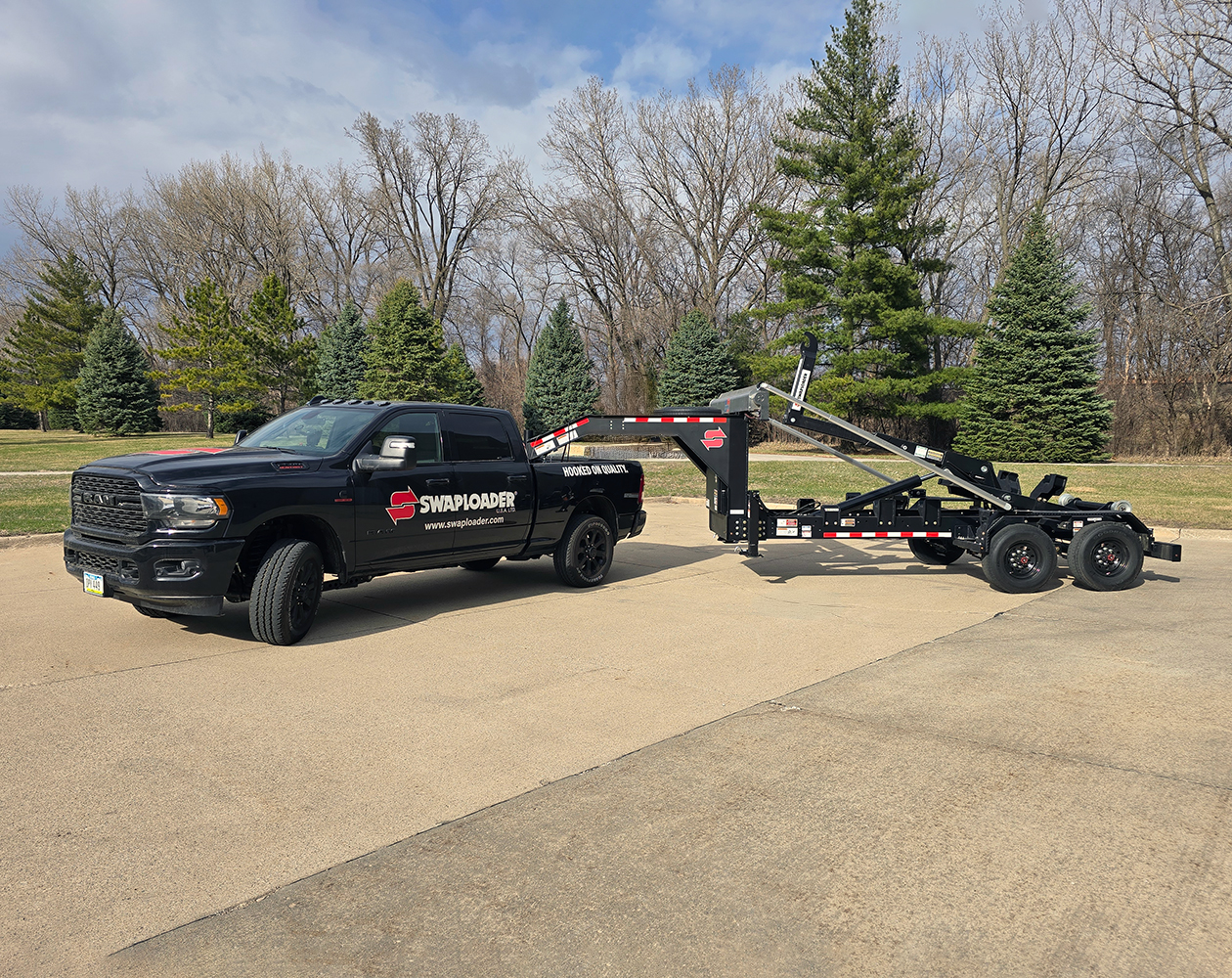

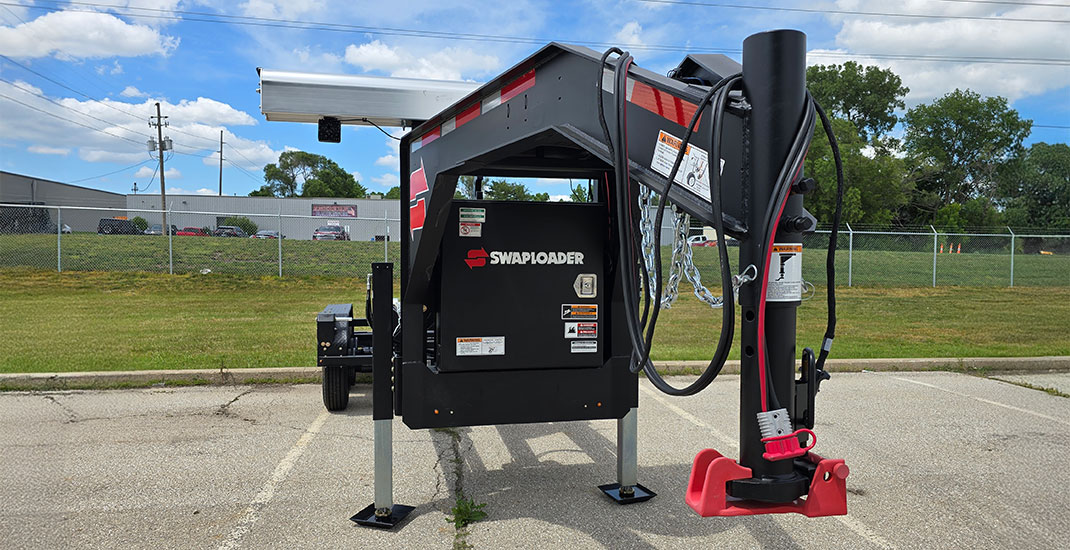

Gooseneck
Engineered with a rugged tubular gooseneck frame, this design delivers unparalleled strength and stability. It maintains superior alignment and weight distribution, ensuring smoother hauling and rock-solid performance in even the toughest operational conditions.

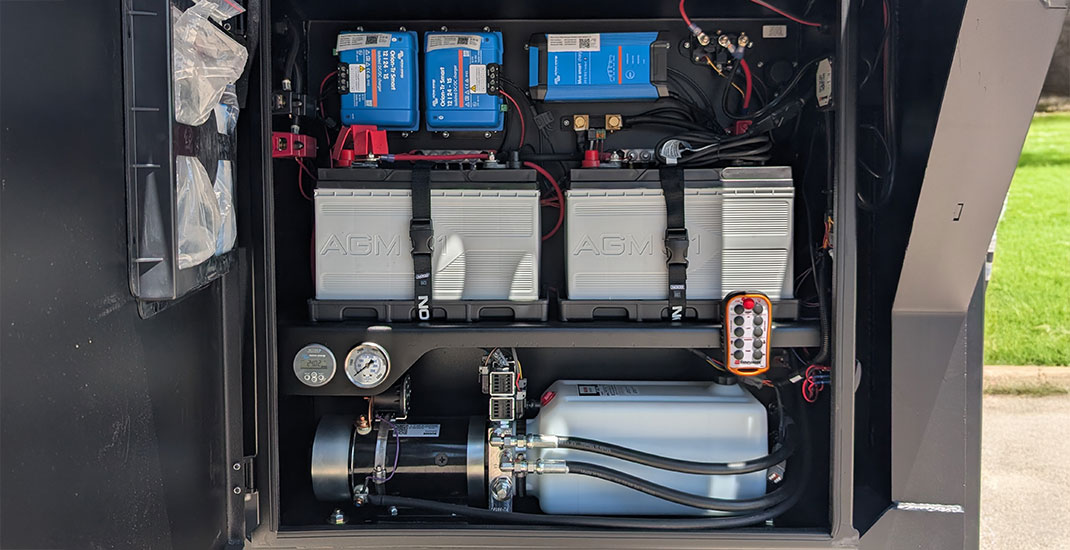

Electric Over Hydraulic Power Unit
Enjoy smooth, responsive operation thanks to the advanced electric-over-hydraulic power unit. It provides efficient, pressurized control right at your fingertips—no manual pumping, no wasted effort.
Shur-Co® Waste Warrior Series Electric Tarp
The Shur‑Co® Waste Warrior electric tarp system brings unmatched strength and convenience. Featuring a heavy‑duty American‑made motor, magnetic brake, and extruded aluminum arms, it’s built to withstand daily abuse.
Dexter Heavy Duty Tandem 10,000 lb. Spring Axle
Built tough with heavy-duty tandem Dexter axles rated at 10,000 lb., providing excellent load support and reliability. The spring suspension offers a smoother ride and enhanced durability under heavy loads—perfect for frequent use.
14-Ply, 16” Tires w/ Black Wheels
Equipped with 14‑ply, 16‑inch tires mounted on sleek black wheels, this setup offers maximum traction and longevity. Whether you’re hauling heavy loads or navigating rough terrain, these tires deliver confidence and reliability mile after mile.
Heavy Duty Bumper w/ LED Lights
Our heavy-duty bumper with integrated LED lighting boosts visibility, safety, and durability. Engineered to resist impacts and the elements, and equipped with bright, LEDs, it keeps your rig road-ready and compliant.
Heavy Duty Huck Bolt Fasteners
Featuring industrial-grade Huck bolt fasteners, this build is rock-solid. Resistant to loosening, corrosion and fatigue, they ensure long-lasting integrity in high-stress areas—no rattles, no worries.
3-Year Limited Warranty
Backed by a comprehensive 3‑Year Limited Warranty, enjoy long-term peace of mind—SwapLoader stands behind every component. We’re committed to your investment, offering reliable service and support when it counts.
