SL-240 (24,000 lb. Capacity)

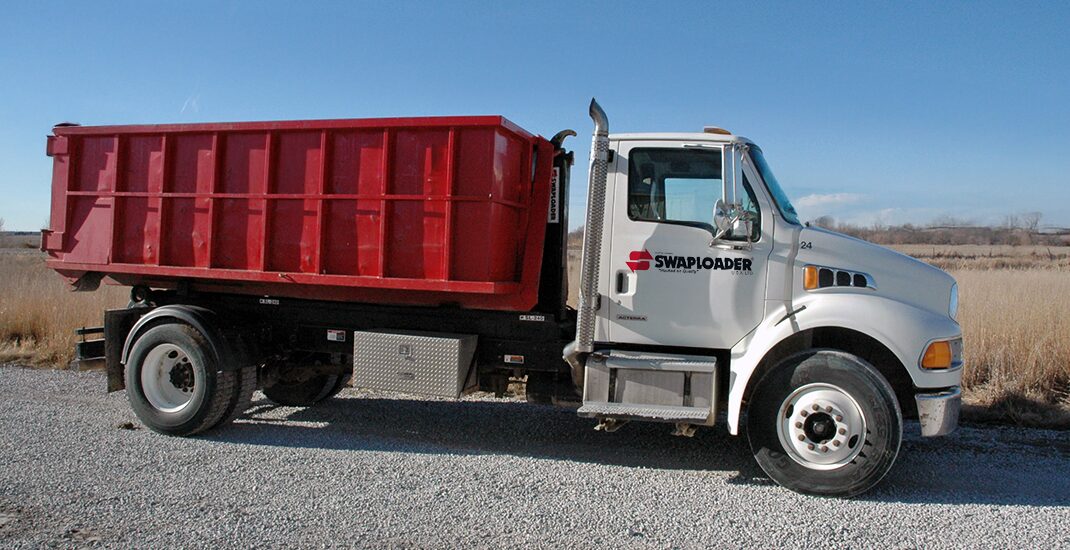

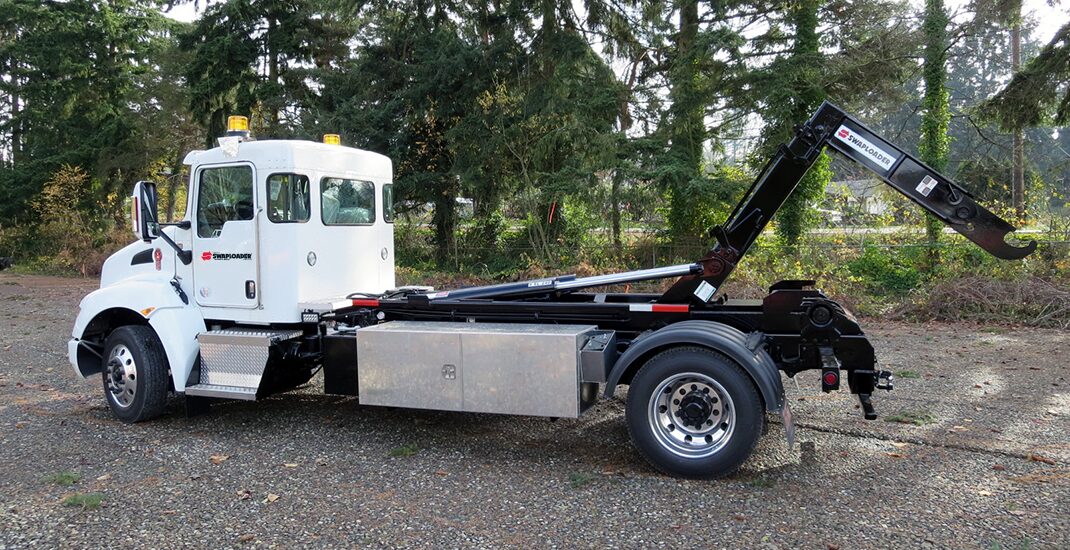

About the SL-240

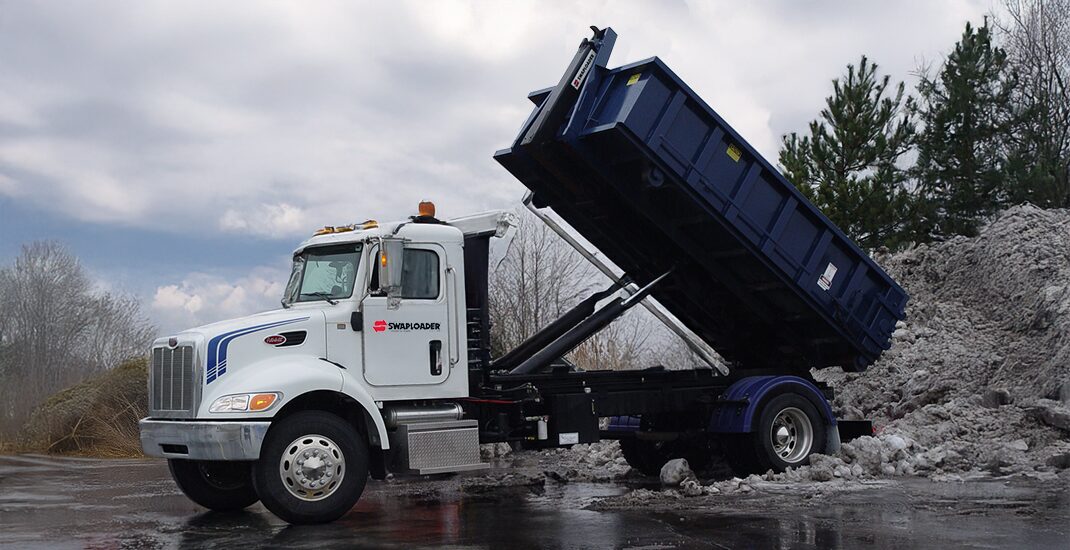

The SL-240 is designed for trucks with a GVW range of 25,000 to 35,000 lb., making it a perfect match for medium-duty applications. With a powerful 24,000 lb. lift capacity, it delivers the performance you need for tough, everyday work, and can accommodate 12′ to 18′ containers. Finished with a durable black powder coat, the SL-240 is built to perform—and built to last.
Specifications
| Item No. 52H17– Fixed Jib 52H52– Adjustable Jib | |
| LIFT / DUMP CAPACITY (INCLUDING CONTAINER) | 24,000 lb. |
| DUMP ANGLE | 53° |
| HOIST WEIGHT* | Fixed: 3,920 lb. or Adjustable: 4,150 lb. |
| HOOK TO REAR ROLLER | 159.81″ |
| HOOK HEIGHT | Fixed: 53.88″ or Adjustable: 53.88″ or 61.75″ |
| HOIST HEIGHT | 9″ |
| HOIST CG | 88.0″ |
| OPTIMUM BODY LENGTHS | 14′ – 16′ |
| POTENTIAL BODY LENGTHS* | 12′ – 18′ |
| BODY LONGSILL WIDTH* | 41.63″ / 40.50″ |
| HYDRAULIC PUMP TYPE | Gear (4.46) |
| FLOW @ PUMP RPM* | 17.4 GPM @ 1,000 RPM |
| RELIEF PRESSURE | 2,800 PSI |
| HYDRAULIC RESERVOIR | 25 gallons |
| GVW RANGE* | 25,000 lb. – 35,000 lb. |
| CAB-AXLE DIMENSIONS* (Single Axle) | 130″ – 144″ |
| CAB-TRUNNION DIMENSIONS* (Tandem Axle) | 118″ – 130″ |
| CLEAR FRAME RAIL* | 186″ |
| FRAME HEIGHT | up to 43″ |
*Please see the All-Model Spec Sheet in the Related Documents section, for more information.

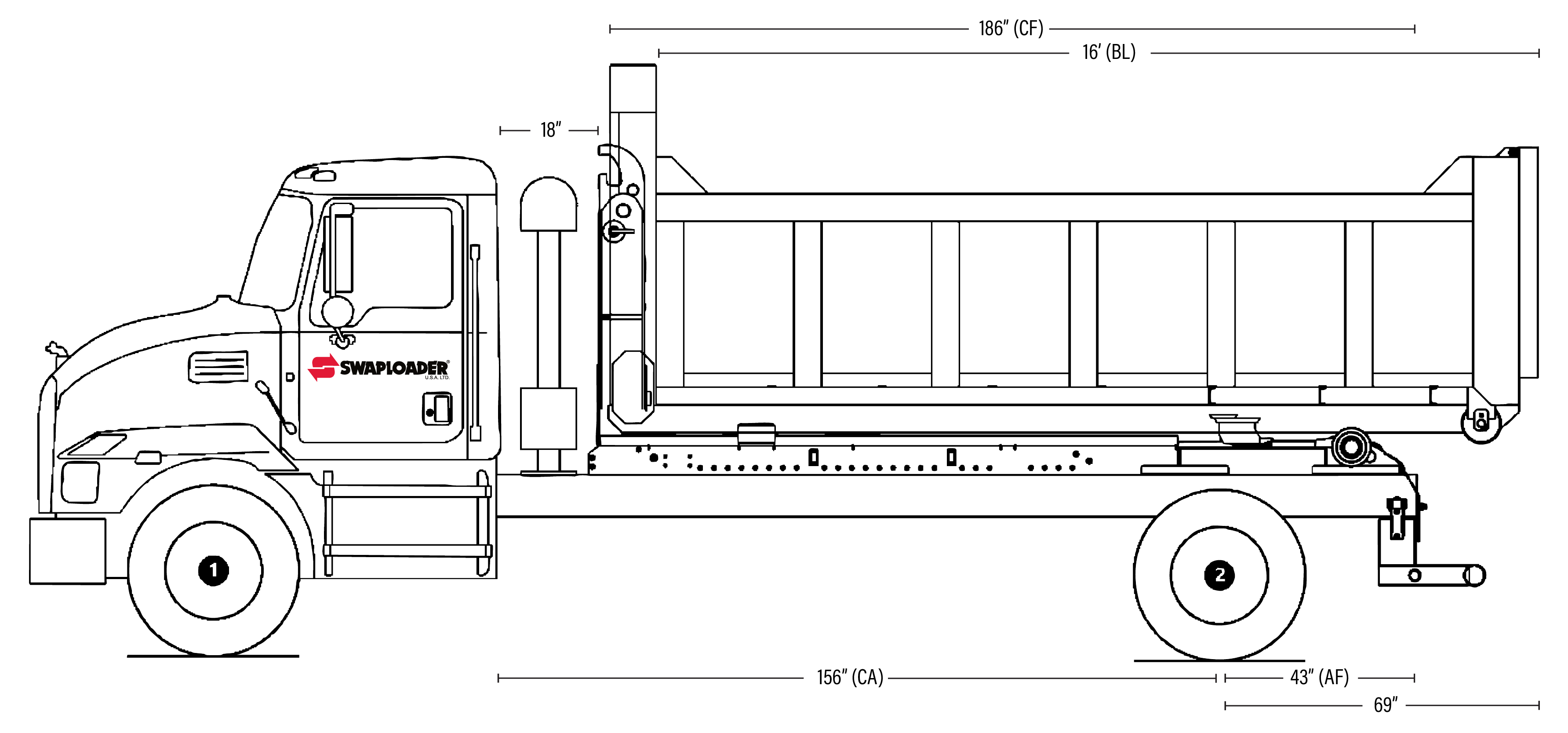

Typical Truck Layout

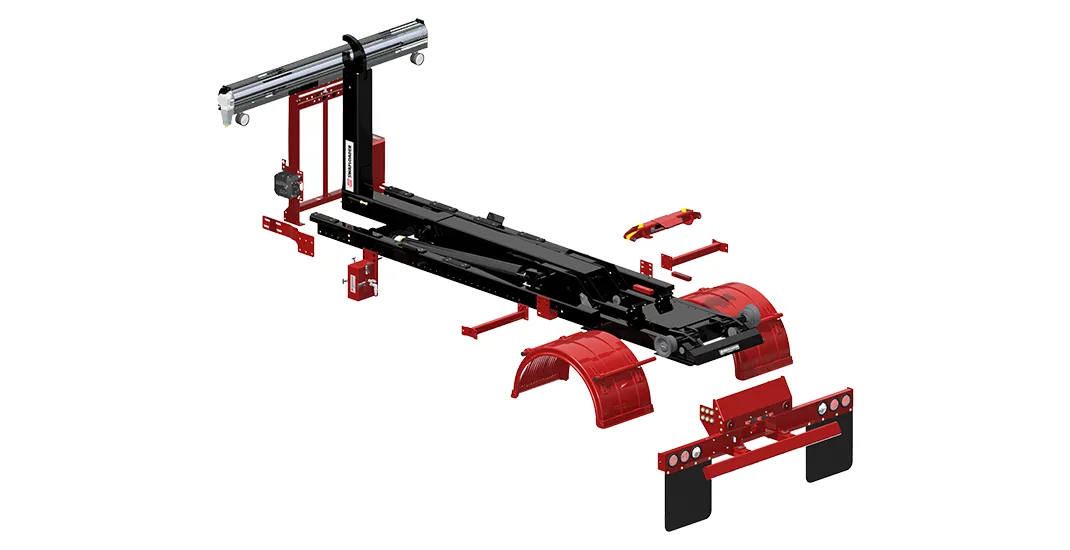

Options & Accessories

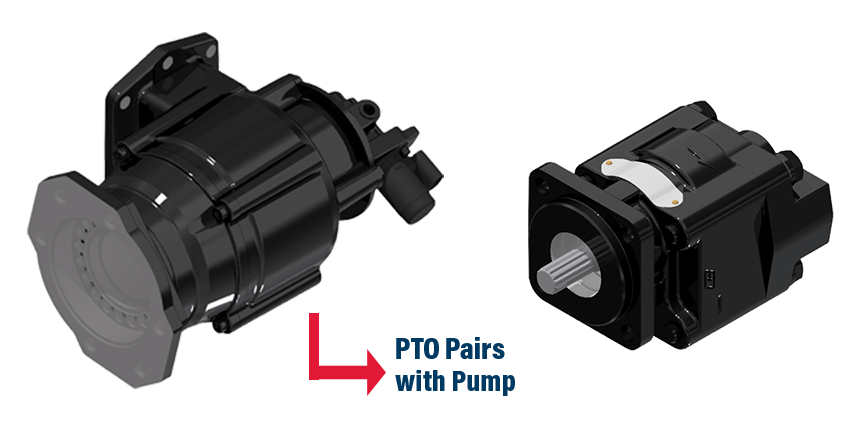

Pumps (includes kit and pump at the listed price when ordered with hoist. Kit not included if pump ordered separately.) Below are typical pump / hoist model pairings, confirm SWL pump compatibility to PTO and truck transmission prior to order.
| Transmission | PTO Item No. | PTO Description | Pairing Pump Item No. | Pump Description |
|---|---|---|---|---|
| Allison 3000 Series | 23P49 | PTO, Muncie 151% SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 21P02 | PTO, Muncie 151% SAE B 2/4 Bolt Flange Parker Hyd Pump, RH 1.86 16FB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE B, 2 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 ORB Suction, 12 ORB Pressure |
| Allison 4000 Series | 23P60 | PTO, Muncie 141% SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 21P02 | Parker Hyd Pump, RH 1.86 16FB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE B, 2 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 ORB Suction, 12 ORB Pressure |
| Ford F650/750 Diesel 2024-Current Model Year 10R140HD | 23P52 | PTO, Muncie 130% F750 SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 23P59 | Bezares Hyd Pump Bi-Rot. Gear 2.50 11.4 GPM @ 1000 RPM Direct Mount SAE B, 4 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 SAE ORB |
| Legacy Pump – No PTO offered | N/A | Not Available | 20P98 | Parker Hyd Pump, RH 2.96 16FB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE B, 4 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 ORB Suction, 12 ORB Pressure |
| Item No. | Description |
|---|---|
| 90H61 | 2-Section Valve w/ Air Controls |
| EHV-240 | 2-Section EHV w/ Toggles |
| ULOCK-240C | 3-Section Valve w/ Manual Controls & U-Lock |
| ULOCK-240A | 3-Section Valve w/ Air Controls & U-Lock |
| ULOCK-240E | 3-Section EHV w/ Toggles & U-Lock |
| Control Package Add Ons: | |
| 21P42 | Power Beyond, V20 |

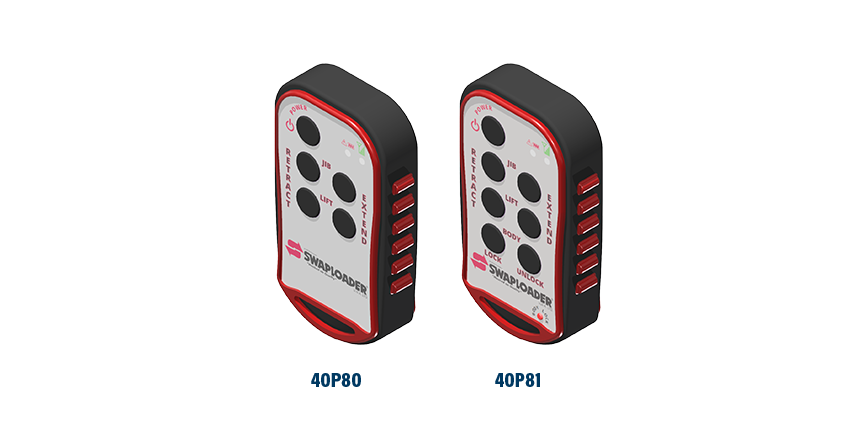

| Item No. | Description | Compatability |
|---|---|---|
| 40P80 | Remote & Receiver, 2-Section EHV | EHV-220 |
| 40P81 | Remote & Receiver, 3-Section EHV | ULOCK-220E |

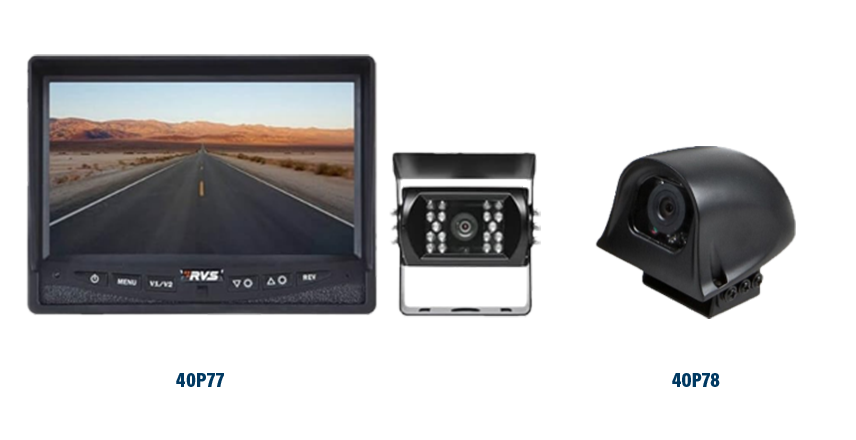

| Item No. | Description |
|---|---|
| 40P77 | Back Up Camera & Display |
| 40P78 | Side View Camera |

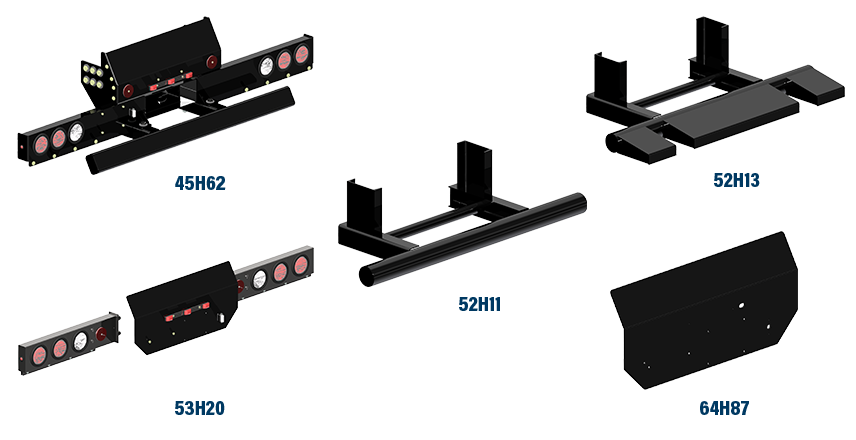

| Item No. | Description | Additional Information |
|---|---|---|
| 45H62 | Bumper & Light Assembly | Sealed module with tail, brake, back-up, license plate, side & rear clearance (prewired). Bolt-On Application – hardware included. Finish: Black Powder Coat |
| 52H11 | Bumper Assembly, Standard | Standard bumper. Welding required. See installation instructions in the Technical Guide. Finish: Black Powder Coat |
| 52H13 | Bumper Assembly, Standard w/ Extensions | Standard bumper with extensions. Welding required. See installation instructions in the Technical Guide. Finish: Black Powder Coat |
| 53H20 | Light Bar Assembly, LED | Sealed module with tail, brake, back-up, license plate, side & rear clearance (prewired). Mount hardware included. Finish: Stainless Steel |
| 64H87 | Center Plate | To secure license plate and license plate lamp, taillight junction box and wiring harness. Finish: Black Powder Coat |

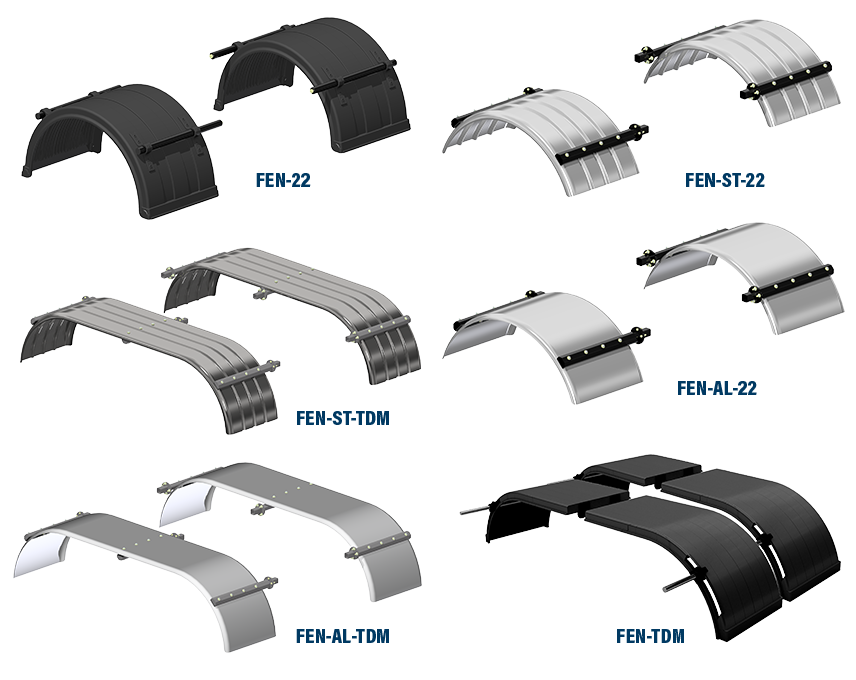

| Item No. | Description | Additional Information |
|---|---|---|
| FEN-22 | Fender Assembly, Poly Single 22″ | Single axle polypropylene fender set. Fits 22″- 24″ tires. Supplied with mount brackets. Color: Black |
| FEN-ST-22 | Fender Assembly, Steel Single | Single axle steel fender set. Fits 20″, 22″ tires. Supplied with mount brackets. Finish: Steel Ribbed |
| FEN-AL-22 | Fender Assembly, Aluminum Single | Single axle aluminum fender set. Fits 20″, 22″ tires. Supplied with mount brackets. Finish: Aluminum Smooth |
| FEN-AL-TDM | Fender Assembly, Aluminum Tandem | Tandem axle aluminum fender set. Fits 20″, 22″ tires. Supplied with mounting brackets & hardware. Finish: Aluminum Smooth |
| FEN-ST-TDM | Fender Assembly, Steel Tandem | Tandem axle steel fender set. Fits 20″, 22″ tires. Supplied with mounting brackets & hardware. Finish: Steel Ribbed |
| FEN-TDM | Fender Assembly, Poly Tandem | Tandem axle steel fender set. Fits 20″, 22″ tires. Supplied with mounting brackets & hardware. Color: Black |

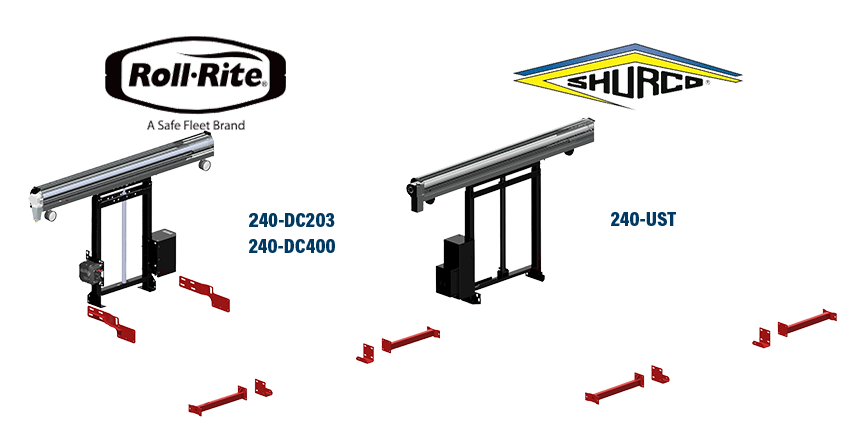

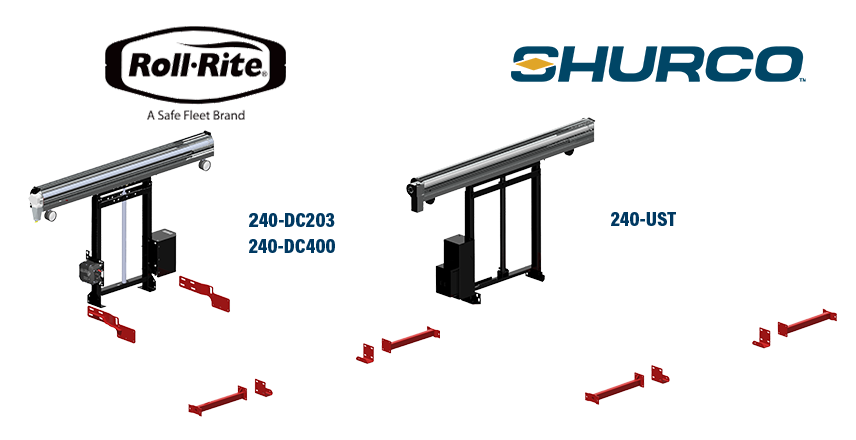

Tarp Arms included with all tarp packages.
| Item No. | Description | Additional Information |
|---|---|---|
| 240-DC203 | Roll Rite® Tarp System, Adjustable Tower & Fixed Pivots for Single Axle Trucks with 10′ – 18′ Containers | Includes: 69203 – DC203, Single Stage Tower, 5 Spring 84″ Ext Pivot, Bow Set 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Extension 86242 – Tarp, Super Tough Mesh 96″ x 24′ Work Lights 55H61 – Mount Brackets & Hardware for Gantry, Tarp Arms Note: If ordering manual controls with hoist, longer control cables may be required. |
| 240-DC400 | Roll Rite® Tarp System, SD Adjustable Tower & Fixed Pivots for Tandem Axle Trucks with 18′ – 24′ Containers | Includes: 69400 – DC400, SD Adjustable Tower, 6 Spring Top Mount Pivot, Wide Bow Set 86302 – Tarp, Super Tough Mesh 96″ x 30′ 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Ext. Work Lights 55H65 – Mount Brackets & Hardware for Gantry, Tarp Arms Note: If ordering manual controls with hoist, longer control cables may be required. |
| 240-UST | Shur-Co® System, Single Stage Waste Warrior for Single Axle Trucks | Includes: 15100-AL5-SL Single Stage Tarp Tower, 5 Spring Ext Mount Arm Kit Electric over Hydraulic Powerpack System that allows for Plug and Play Tarp covering up to 40-Yard Containers LED Work Lights 55H60 – Mount Brackets & Hardware for Tarp Arms |
53 7/8″ Hook Height
A-frame with Ø1-3/4″ lift bar, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 51H51 | 14′ – 200B Series Subframe |
| 51H57 | 16′ – 200B Series Subframe |
| 51H60 | 18′ – 200B Series Subframe |
Heavy duty A-frame with Ø2-1/2″ lift bar construction, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 52H59 | 12′ – 300 Series Subframe |
| 52H62 | 13′ – 300 Series Subframe |
| 52H23 | 14′ – 300 Series Subframe |
| 52H65 | 15′ – 300 Series Subframe |
| 52H26 | 16′ – 300 Series Subframe |
| 52H29 | 18′ – 300 Series Subframe |
