SL-214 (20,000 lb. Capacity)
About the SL-214
The SL-214 is designed for trucks with a GVW range of 25,000 to 35,000 lb., making it a perfect match for medium-duty applications. With a powerful 20,000 lb. lift capacity, it delivers the performance you need for tough, everyday work, and can accommodate 12′ to 18′ containers. Finished with a durable black powder coat, the SL-214 is built to perform—and built to last.
Specifications
| Item No. | 13H51 – Fixed Jib 13H60 – SL-214 Adjustable Jib |
| LIFT / DUMP CAPACITY (INCLUDING CONTAINER) | 20,000 lb. |
| DUMP ANGLE | 57° |
| HOIST WEIGHT* | Fixed: 2,760 lb. or Adjustable: 2,910 lb. |
| HOOK TO REAR ROLLER | 153.63″ |
| HOOK HEIGHT | Fixed: 35 5/8″ or Adjustable: 35 5/8″ or 53 7/8″ |
| HOIST HEIGHT | 7.5″ |
| HOIST CG | 80.3″ |
| OPTIMUM BODY LENGTHS | 14′ – 16′ |
| POTENTIAL BODY LENGTHS* | 12′ – 18′ |
| BODY LONGSILL WIDTH* | 41.63″ / 40.50″ |
| HYDRAULIC PUMP TYPE | Gear (2.96) |
| FLOW @ PUMP RPM* | 11.4 GPM @ 1,000 RPM |
| RELIEF PRESSURE | 3,250 PSI |
| HYDRAULIC RESERVOIR | 15 gallons |
| GVW RANGE* | 25,000 lb. – 35,000 lb. |
| CAB-AXLE DIMENSIONS* | 120″ – 138″ |
| CLEAR FRAME RAIL* | 172″ |
| FRAME HEIGHT | up to 40″ |
*Please see the All-Model Spec Sheet in the Related Documents section, for more information.

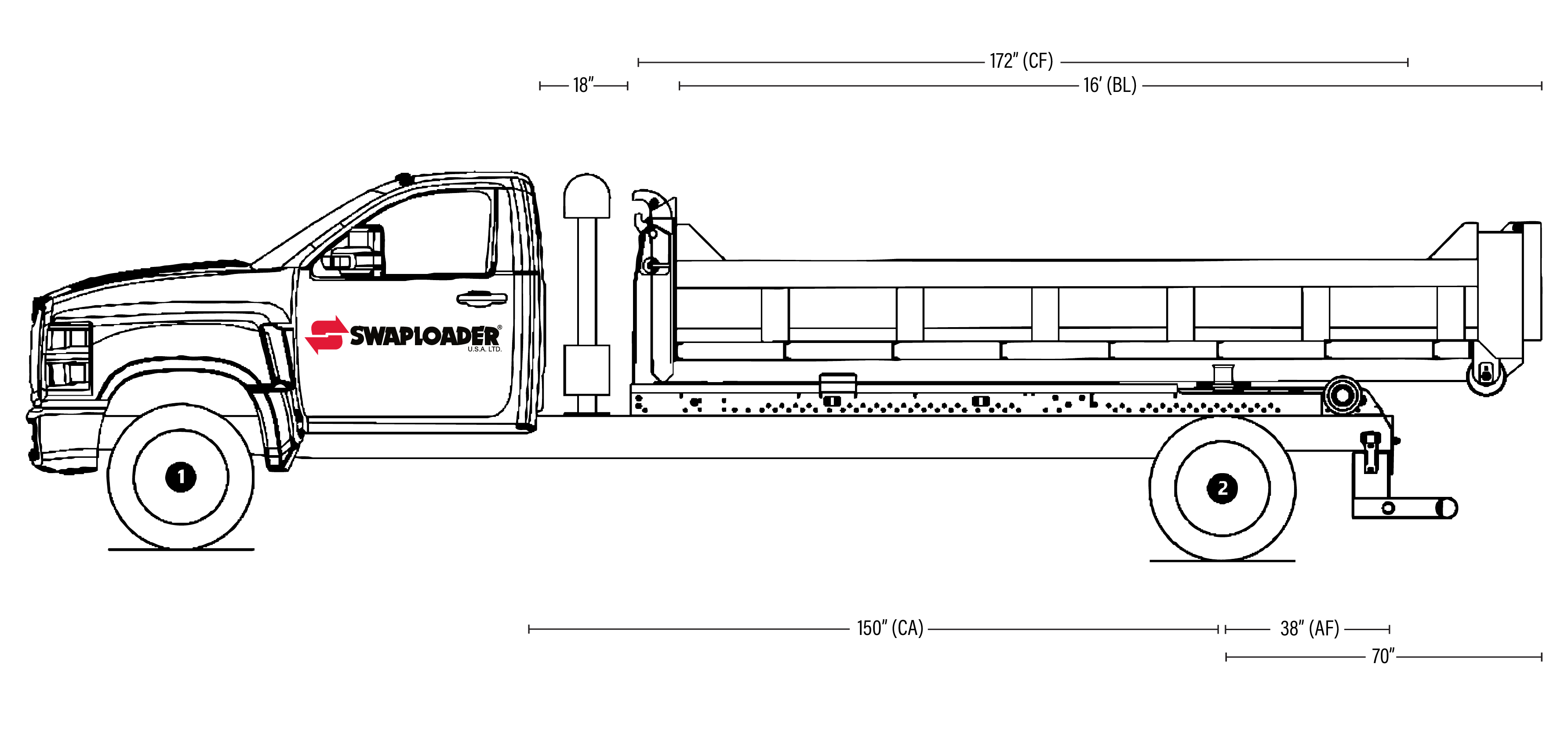

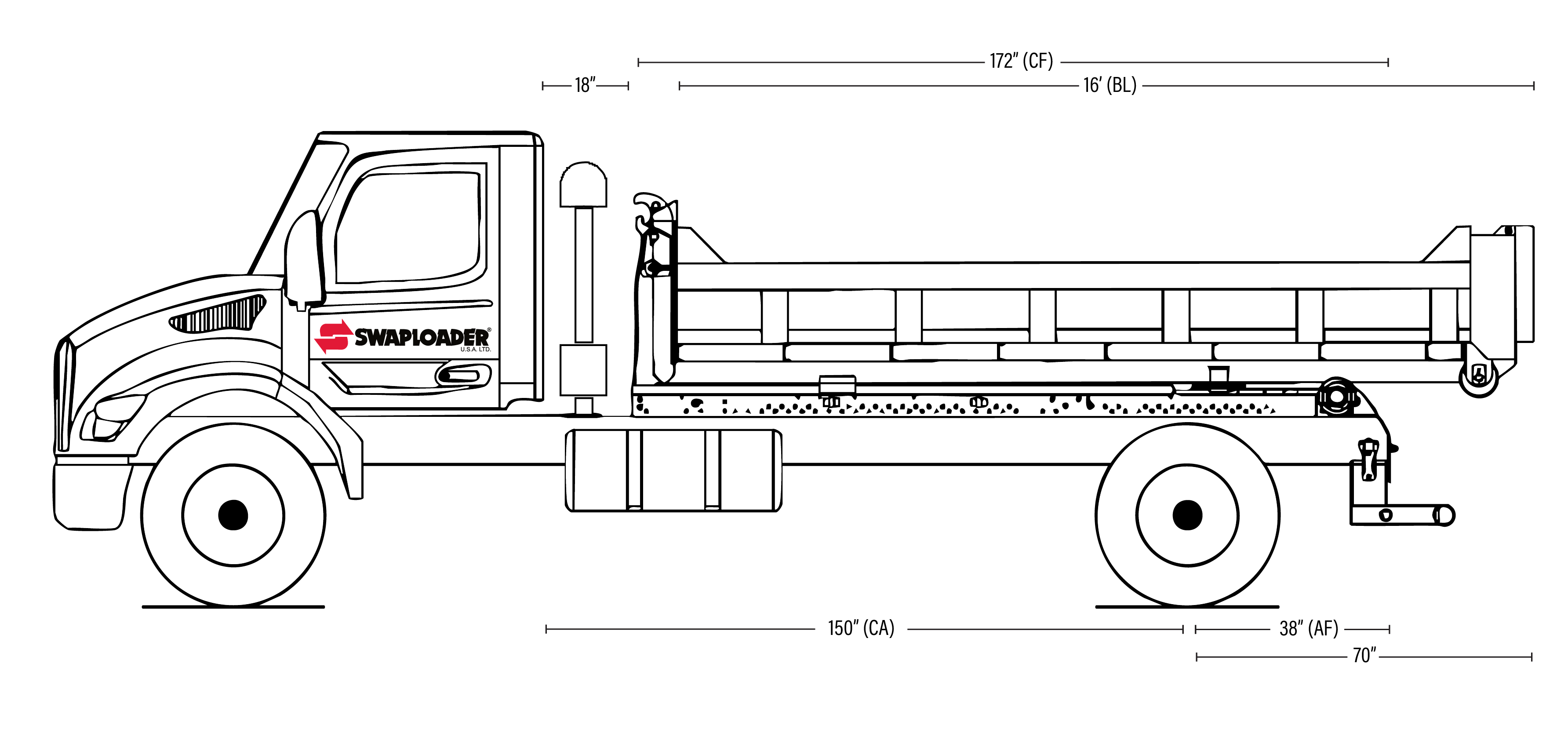

Typical Truck Layout

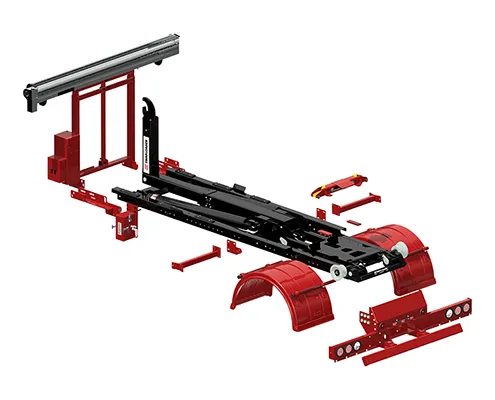

Options & Accessories
Pumps (includes kit and pump at the listed price when ordered with hoist. Kit not included if pump ordered separately.) Below are typical pump / hoist model pairings, confirm SWL pump compatibility to PTO and truck transmission prior to order.
| Transmission | PTO Item No. | PTO Description | Pairing Pump Item No. | Pump Description |
|---|---|---|---|---|
| Allison 3000 Series | 23P49 | PTO, Muncie 151% SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 21P02 | PTO, Muncie 151% SAE B 2/4 Bolt Flange Parker Hyd Pump, RH 1.86 16FB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE B, 2 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 ORB Suction, 12 ORB Pressure |
| Allison 4000 Series | 23P60 | PTO, Muncie 141% SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 21P02 | Parker Hyd Pump, RH 1.86 16FB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE B, 2 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 ORB Suction, 12 ORB Pressure |
| Ford F450/550/600 Diesel 2020-Current Model Year 10R140 | 23P53 | PTO, Muncie 130% F550 SAE A 2 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 23P54 | Parker Hyd Pump, LH 2.32 20HB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE A, 2 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 1-1/4 Hose Barb Suction, 12 ORB Pressure |
| Ford F650/750 Diesel 2024-Current Model Year 10R140HD | 23P52 | PTO, Muncie 130% F750 SAE B 2/4 Bolt Flange SAE B 7/8-13 Tooth Spline Electric over Hydraulic Hotshift | 23P59 | Bezares Hyd Pump Bi-Rot. Gear 2.50 11.4 GPM @ 1000 RPM Direct Mount SAE B, 4 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 SAE ORB |
| Legacy Pump – No PTO offered | N/A | Not Available | 20P98 | Parker Hyd Pump, RH 2.96 16FB/12FB 11.4 GPM @ 1000 RPM Direct Mount SAE B, 4 Bolt flange SAE B 7/8-13 Tooth Spline Shaft Rear Ports: 16 ORB Suction, 12 ORB Pressure |

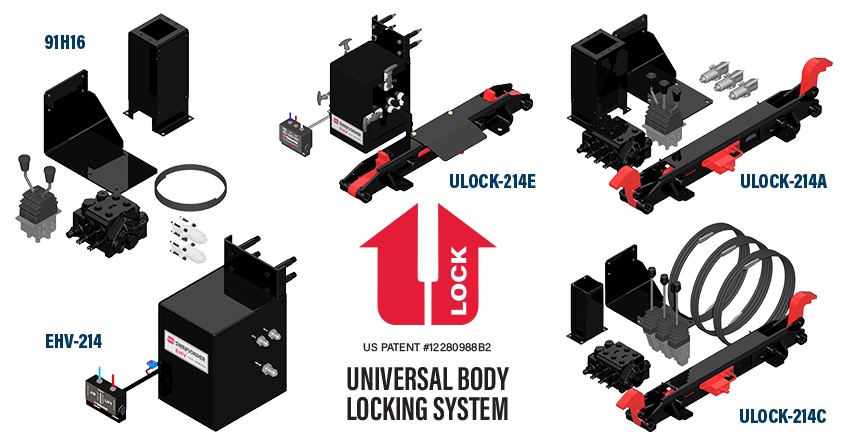

| Item No. | Description |
|---|---|
| 91H16 | 2-Section Valve w/ Air Controls |
| EHV-214 | 2-Section EHV w/ Toggles |
| ULOCK-214C | 3-Section Valve w/ Manual Controls & U-Lock |
| ULOCK-214A | 3-Section Valve w/ Air Controls & U-Lock |
| ULOCK-214E | 3-Section EHV w/ Toggles & U-Lock |
| Control Package Add Ons: | |
| 21P42 | Power Beyond, V20 |

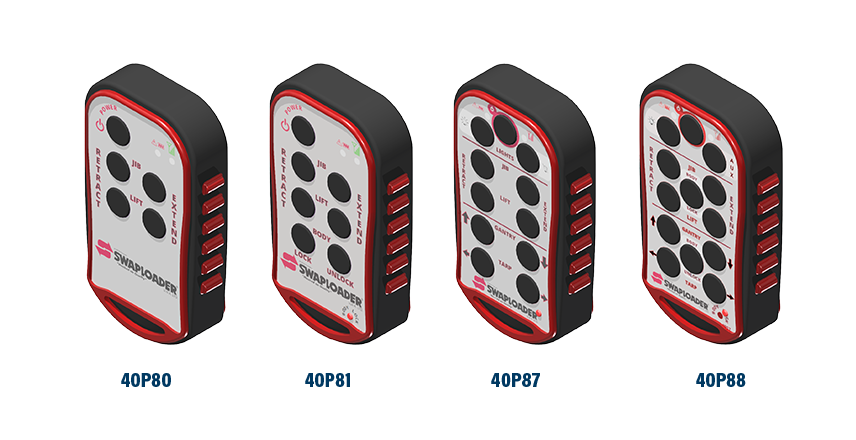

| Item No. | Description | Compatability |
|---|---|---|
| 40P80 | Remote & Receiver, 2-Section EHV | EHV-214 |
| 40P81 | Remote & Receiver, 3-Section EHV | ULOCK-214E |
| 40P87 | Remote & Receiver, 2-Section UST | EHV-214, with Shur-Co® Tarp |
| 40P88 | Remote & Receiver, 3-Section UST | ULOCK-214E, with Shur-Co® Tarp |
| Item No. | Description |
|---|---|
| 40P77 | Back Up Camera & Display |
| 40P78 | Side View Camera |

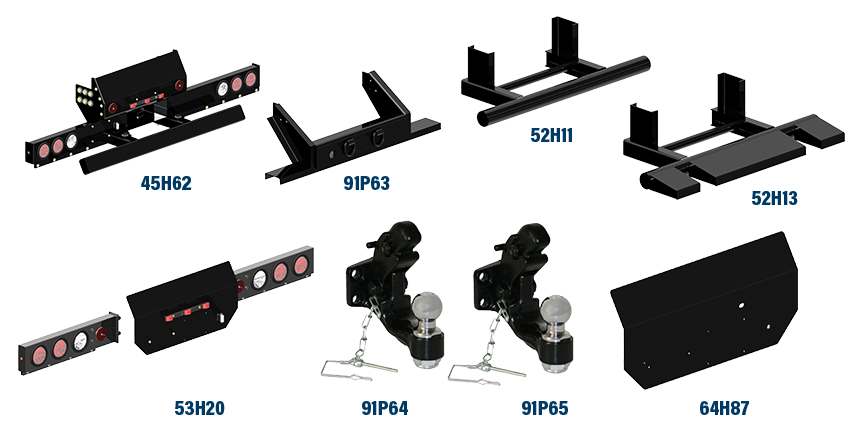

| Item No. | Description | Additional Information |
|---|---|---|
| 45H62 | Bumper & Light Assembly | Sealed module with tail, brake, back-up, license plate, side & rear clearance (prewired). Bolt-On Application – hardware included. Finish: Black Powder Coat |
| 91P63 | Bumper Assembly, Hitch Plate | Equipped with two D-Rings and pre-drilled holes for pintle or hitch Finish: Black Powder Coat |
| 91P64 | Combination Hitch, 8 Ton 1.88″ Ball | 8 Ton Combination Hitch with 1-7/8″ Ball. Fits 91P63 Hitch Plate Bumper. Finish: Black Powder Coat |
| 91P65 | Combination Hitch, 8 Ton 2.00″ Ball | 8 Ton Combination Hitch with 2″ Ball. Fits 91P63 Hitch Plate Bumper. Finish: Black Powder Coat |
| 52H11 | Bumper Assembly, Standard | Standard bumper. Welding required. See installation instructions in the Technical Guide. Finish: Black Powder Coat |
| 52H13 | Bumper Assembly, Standard w/ Extensions | Standard bumper with extensions. Welding required. See installation instructions in the Technical Guide. Finish: Black Powder Coat |
| 53H20 | Light Bar Assembly, LED | Sealed module with tail, brake, back-up, license plate, side & rear clearance (prewired). Mount hardware included. Finish: Stainless Steel |
| 64H87 | Center Plate | To secure license plate and license plate lamp, taillight junction box and wiring harness. Finish: Black Powder Coat |
| Item No. | Description | Additional Information |
|---|---|---|
| FEN-195 | Fender Assembly, Poly Single 19-1/2″ | Single axle polypropylene fender set. Fits 19-1/2″ tires. Supplied with mount brackets. Color: Black |
| FEN-22 | Fender Assembly, Poly Single 22″ | Single axle polypropylene fender set. Fits 22″- 24″ tires. Supplied with mount brackets. Color: Black |
| FEN-ST-22 | Fender Assembly, Steel Single | Single axle steel fender set. Fits 20″, 22″ tires. Supplied with mount brackets. Finish: Steel Ribbed |
| FEN-AL-22 | Fender Assembly, Aluminum Single | Single axle aluminum fender set. Fits 20″, 22″ tires. Supplied with mount brackets. Finish: Aluminum Smooth |

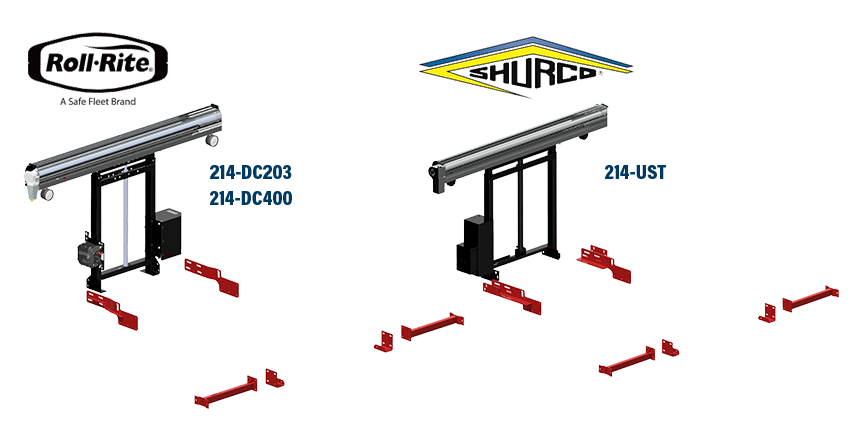

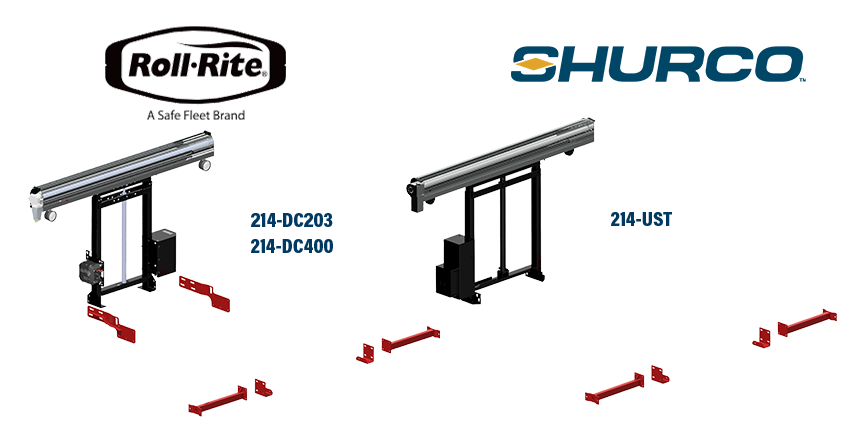

Tarp Arms included with all tarp packages.
| Item No. | Description | Additional Information |
|---|---|---|
| 214-DC203 | Roll Rite® Tarp System, Adjustable Tower & Fixed Pivots for Single Axle Trucks with 10′ – 18′ Containers | Includes: 69203 – DC203, Single Stage Tower, 5 Spring 84″ Ext Pivot, Bow Set 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Extension 86242 – Tarp, Super Tough Mesh 96″ x 24′ Work Lights 14H64 – Mount Brackets & Hardware for Gantry, Tarp Arms Note: If ordering manual controls with hoist, longer control cables may be required. |
| 214-DC400 | Roll Rite® Tarp System, SD Adjustable Tower & Fixed Pivots for Tandem Axle Trucks with 18′ – 24′ Containers | Includes: 69400 – DC400, SD Adjustable Tower, 6 Spring Top Mount Pivot, Wide Bow Set 86302 – Tarp, Super Tough Mesh 96″ x 30′ 76916 – Pivot, 45 Low Arm Elbow Kit 32″ Ext. Work Lights 14H69 – Mount Brackets & Hardware for Gantry, Tarp Arms Note: If ordering manual controls with hoist, longer control cables may be required. |
| 214-UST | Shur-Co® System, Single Stage Waste Warrior for Single Axle Trucks | Includes: 15100-AL5-SL Single Stage Tarp Tower, 5 Spring Ext Mount Arm Kit Electric over Hydraulic Powerpack System that allows for Plug and Play Tarp covering up to 40-Yard Containers LED Work Lights 45H76 – Mount Brackets & Hardware for Gantry & Tarp Arms |
35 5/8″ Hook Height

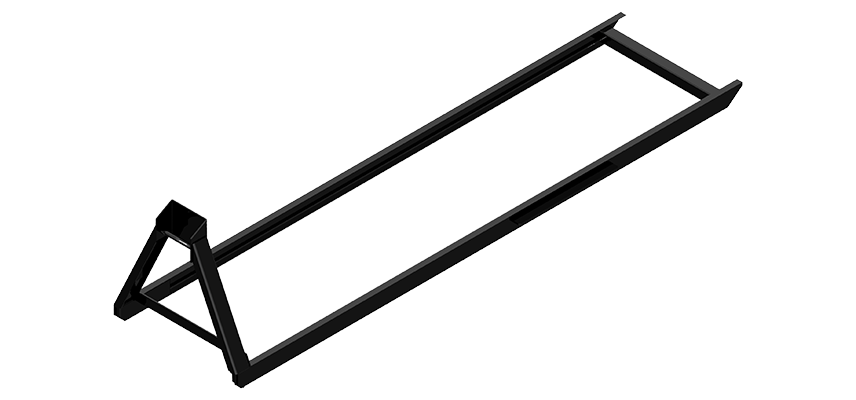

A-frame with Ø1-1/4″ lift bar, 5″ longsills, 35-5/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 11H27 | 12′ – 100 Series Subframe |
| 11H28 | 14′ – 100 Series Subframe |
| 11H29 | 16′ – 100 Series Subframe |
| 12H37 | 18′ – 100 Series Subframe |
53 7/8″ Hook Height
A-frame with Ø1-3/4″ lift bar, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 51H54 | 13′ – 200B Series Subframe |
| 51H51 | 14′ – 200B Series Subframe |
| 51H57 | 16′ – 200B Series Subframe |
| 51H60 | 18′ – 200B Series Subframe |
Heavy duty A-frame with Ø2-1/2″ lift bar construction, 6″ longsills, 53-7/8″ hook height to bottom of lifting bar, 41-5/8″ outside rail width. Body rollers & brackets not included.
| Item No. | Description |
|---|---|
| 52H59 | 12′ – 300 Series Subframe |
| 52H62 | 13′ – 300 Series Subframe |
| 52H23 | 14′ – 300 Series Subframe |
| 52H65 | 15′ – 300 Series Subframe |
| 52H26 | 16′ – 300 Series Subframe |
